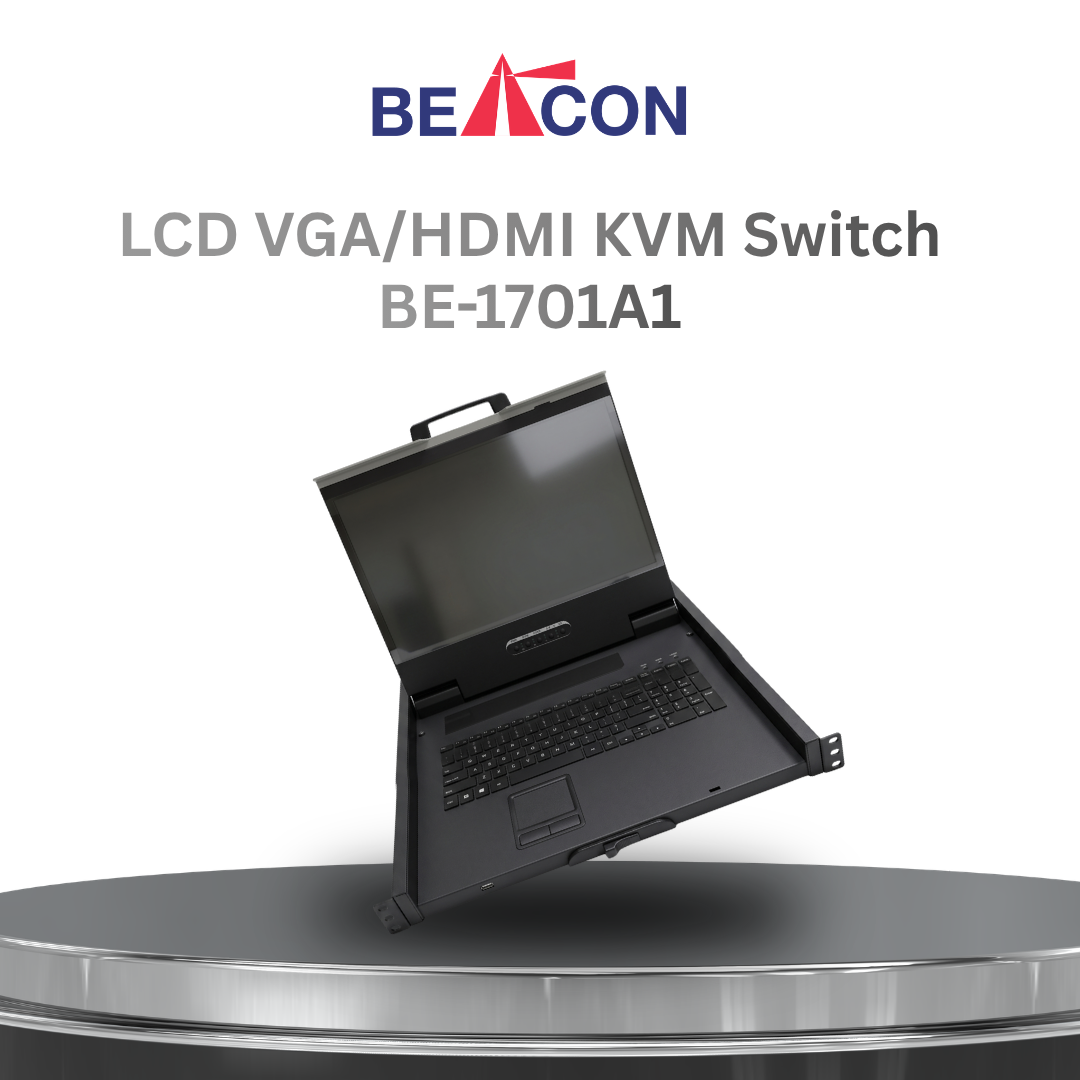

Beacon BE-1701A1 1-Port 17.3″ LCD VGA/HDMI KVM Switch

The Beacon BE-1701A1 is a high-performance, space-saving 1U rackmount LCD KVM console designed for streamlined server control. Equipped with a brilliant 17.3″ SXGA TFT LCD monitor, it delivers crisp Full HD resolution (1920×1080 @ 60Hz) with $400\text{ cd/m}^2$ brightness and a 600:1 contrast ratio for exceptional clarity in data center environments.

This 1-port KVM switch supports dual VGA and HDMI interface attributes, providing optimal control distances of up to 5m for VGA and 1.8m for HDMI. Built for operator comfort and efficiency, the slide-out console includes a standard 104-key backlit keyboard, LED lock indicators (Num, Caps, and Scroll Lock), and a dual-button touchpad.

Its durable chassis features an automatic power-saving mechanism that turns the display ON/OFF when opened or closed past a certain angle. Safety buckles ensure the module remains securely locked or slides freely when needed.

Key Technical Specifications:

• Display Size / Panel Type: 17.3″ SXGA TFT LCD (Supports DDC/DDC2B)

• Resolution: $1920 \times 1080$ @ 60Hz

• Interfaces Supported: 1x PC Port, 1x USB Port (VGA/HDMI Attributes)

• Power Supply: AC 100–240V, 50–60Hz (Low 15W Power Consumption)

• Dimensions & Weight: $450 \times 450 \times 42\text{ mm}$ | 11 kg
