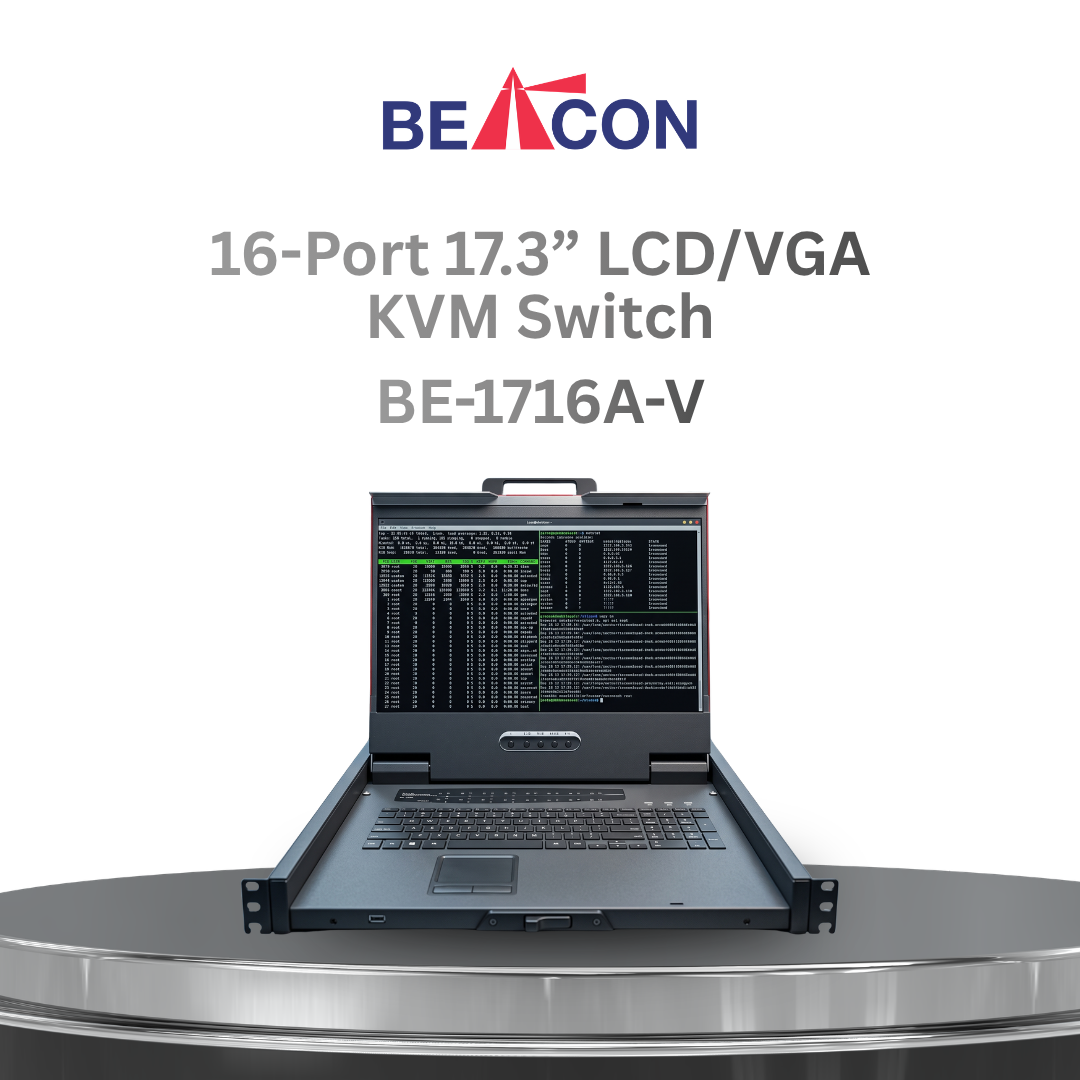

The BE-1716A-V is a high-performance, rack-mountable LCD KVM switch designed to streamline multi-server management in data centers and server rooms. Consolidating a 17.3″ Full HD monitor, a full-sized 104-key keyboard with backlight, and a touchpad with two buttons into a compact $450\text{mm} \times 450\text{mm} \times 42\text{mm}$ 1U design, this unit maximizes workspace efficiency.
Key Features
-
Vibrant Full HD Display: Features a 17.3-inch screen delivering a sharp $1920 \times 1080$ resolution at 60Hz, providing crisp visuals for seamless server maintenance.
-
Seamless Multi-Server Control: Seamlessly connect and control up to 16 PCs or servers via standard VGA interfaces.
-
Effortless Port Switching: Toggle between connected systems effortlessly using On-Screen Display (OSD), custom HotKeys, or the 16 dedicated front-panel quick buttons.
-
Ergonomic Design: Built-in backlit keyboard ensures comfort and accuracy even in low-light server environments. It also features a secure push-in buckle mechanism for smooth pulling and pushing on the rack.
-
Energy Efficient & Durable: Operating with a low power consumption of just 15W, it supports an operating temperature range of $0^\circ\text{C}$ to $50^\circ\text{C}$.
Technical Specifications
-
Model: BE-1716A-V
-
Display Size: 17.3″
-
Resolution: $1920 \times 1080$ @ 60Hz
-
PC Ports: 16x VGA
-
Control Distance: Best within 5 meters
-
Brightness / Contrast: $350 \text{ cd/m}^2$ / 600:1
-
Dimensions / Weight: $450\text{mm} \times 450\text{mm} \times 42\text{mm}$ | 11.5 kg
