BEACON BE-964b IP based Quad HDMI with USB KVM Extender over UTP and SFP Fiber

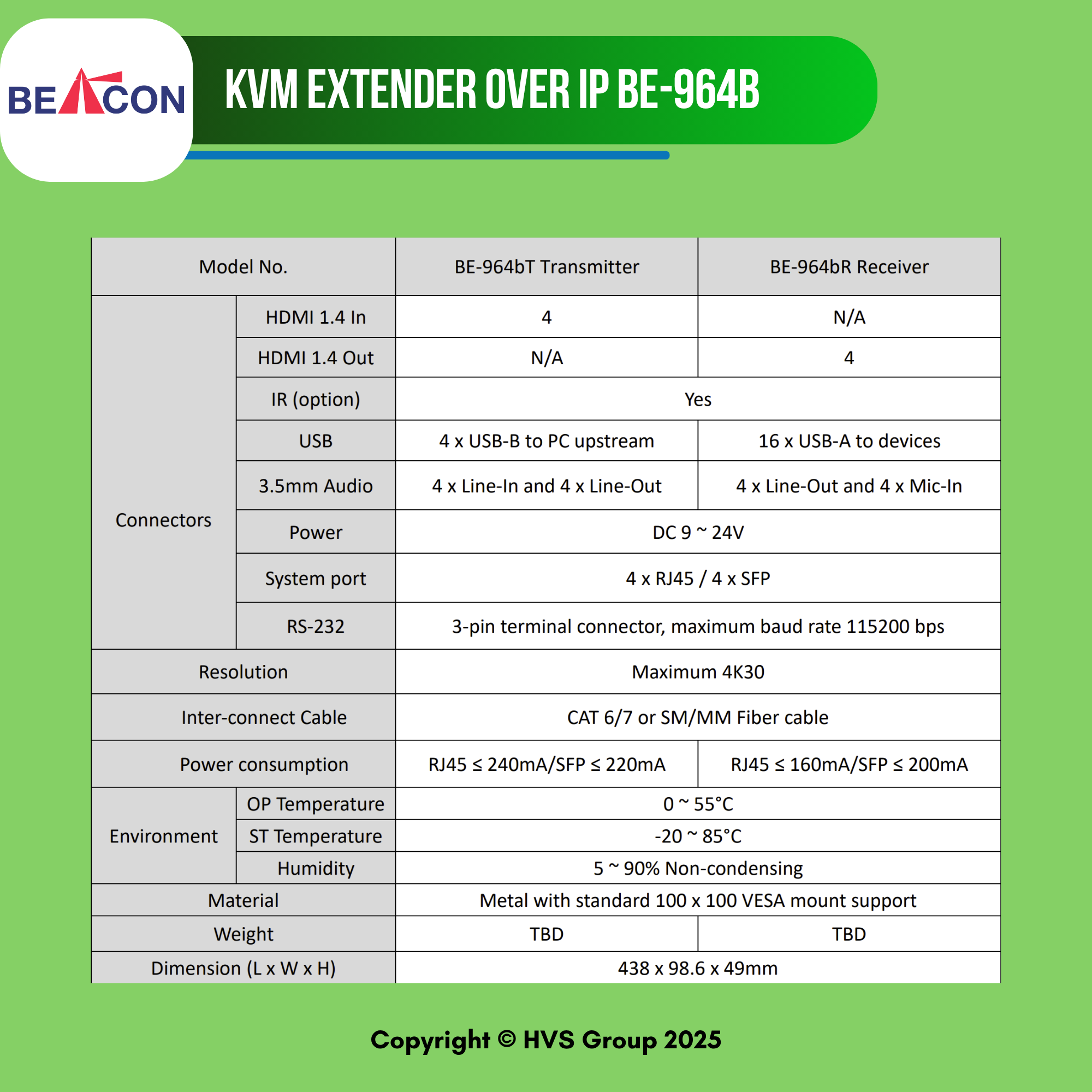

Support Quad HDMI 4K30, 1920×1200@60Hz resolution with Low Latency Time.
Support IP based Gigabit Ethernet Switch for physical layer transmission, built in both
RJ-45 and SFP connection.
Support 16 x USB 2.0 ports for keyboard, mouse, touch, storage.
Support bi-directional 3.5mm audio, speaker and microphone at Receiver site.
Support Auto EDID from Rx screen.
Pure hardware design, plug-and-play, no additional software installation is required.

Categories: KVM Extender, KVM Over IP, KVM Switch Tags: beacon, hdmi kvm, hdmi kvm extender, HDMI KVM Extender Over IP, kvm extender, KVM Extender over IP

Description

BEACON BE-964b

IP based Quad HDMI with USB KVM Extender over UTP and SFP Fiber

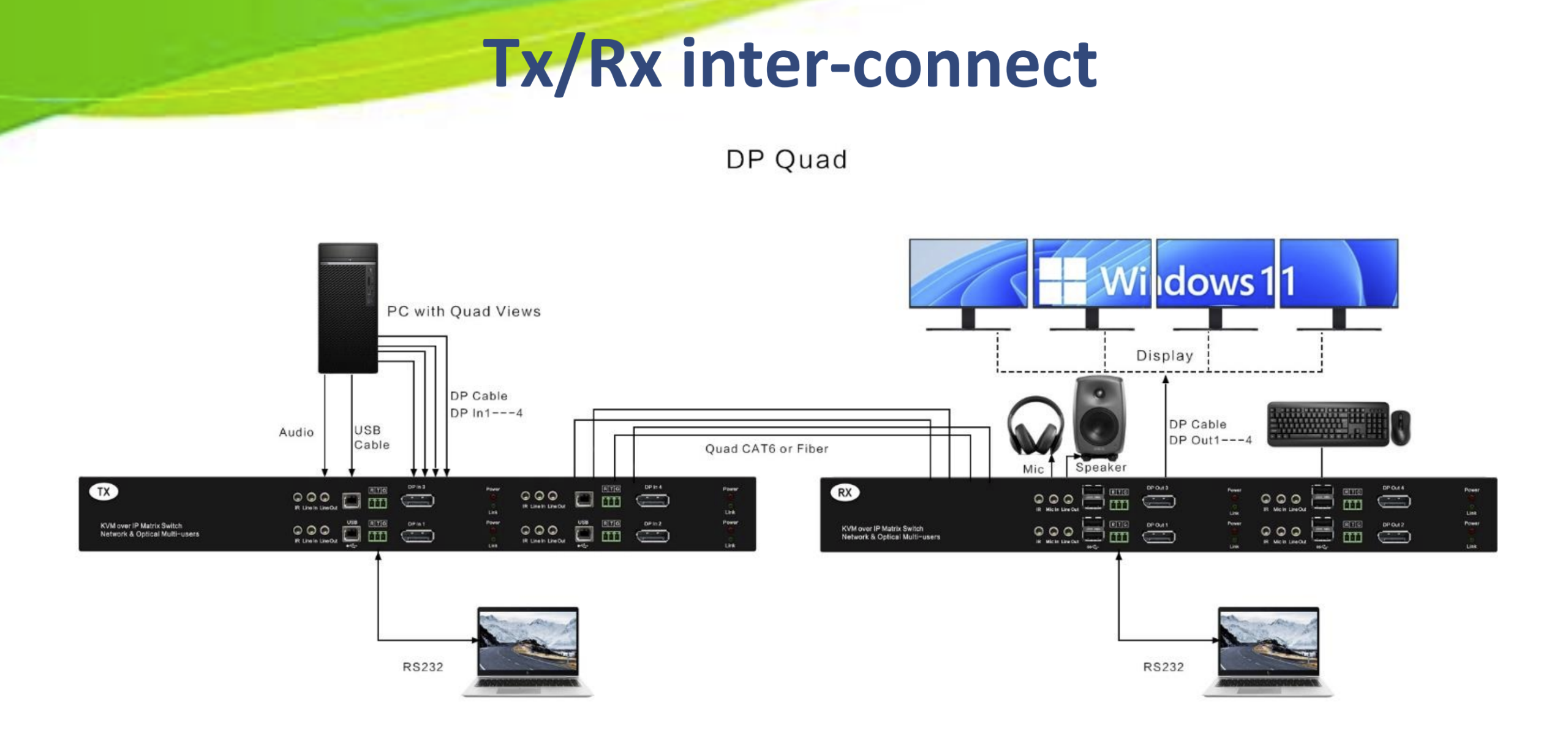

The BE-964b is an IP Unicast based solution that extends Quad 4K30 HDMI with USB and 3.5mm audio,
plus 2-way RS-232 across CAT6 cable up to 150M in 1080p/100M in 4K30, or SFP Fiber Module up to 10KM with SM/300M with MM SFP.

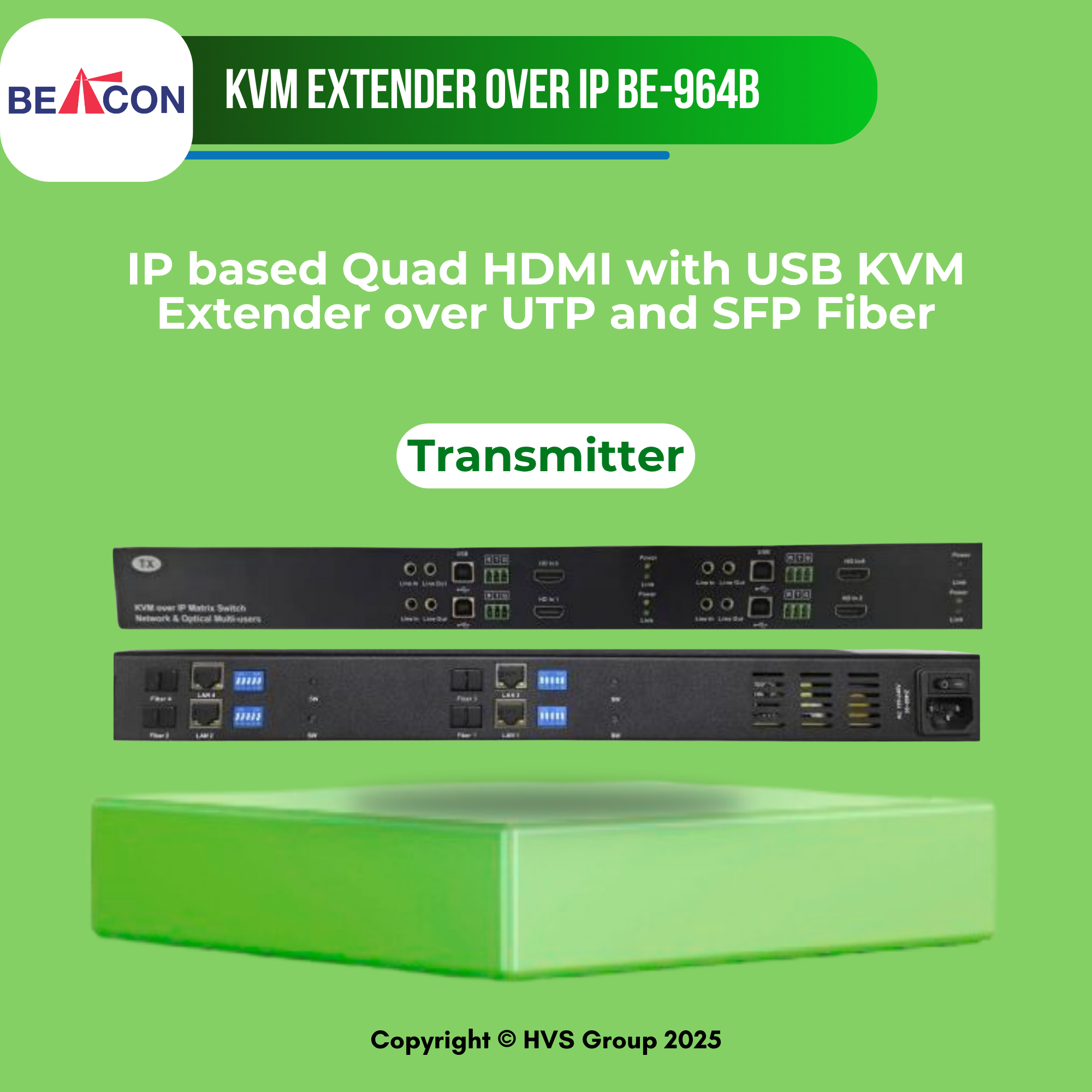

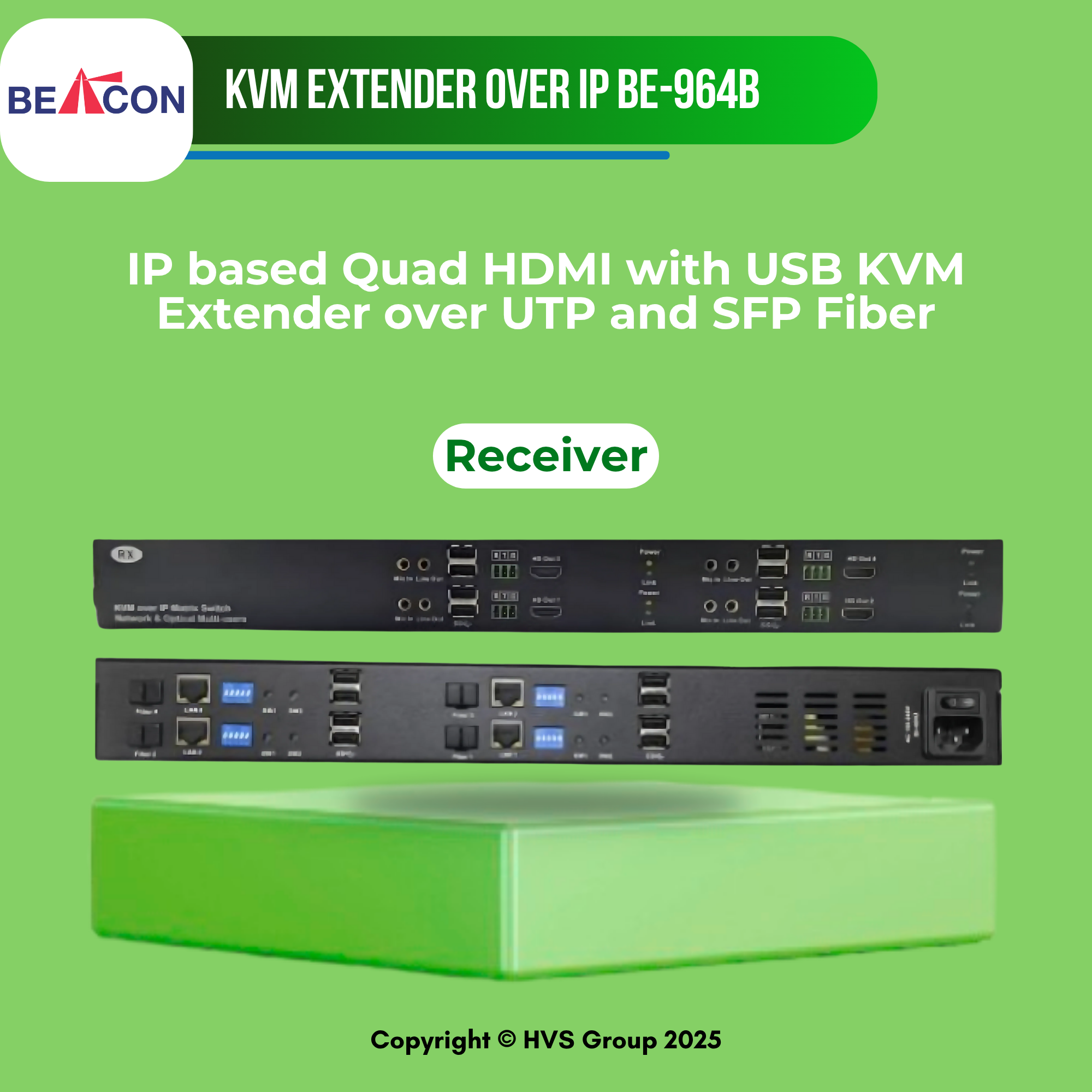

The extender contains a Transmitter unit and a Receiver unit. Based on Gigabit Ethernet
transceiver physical layer with adopt visually lossless video compression algorithm
technology, the device achieves razor sharp video quality and robust performance in noisy
environment.
