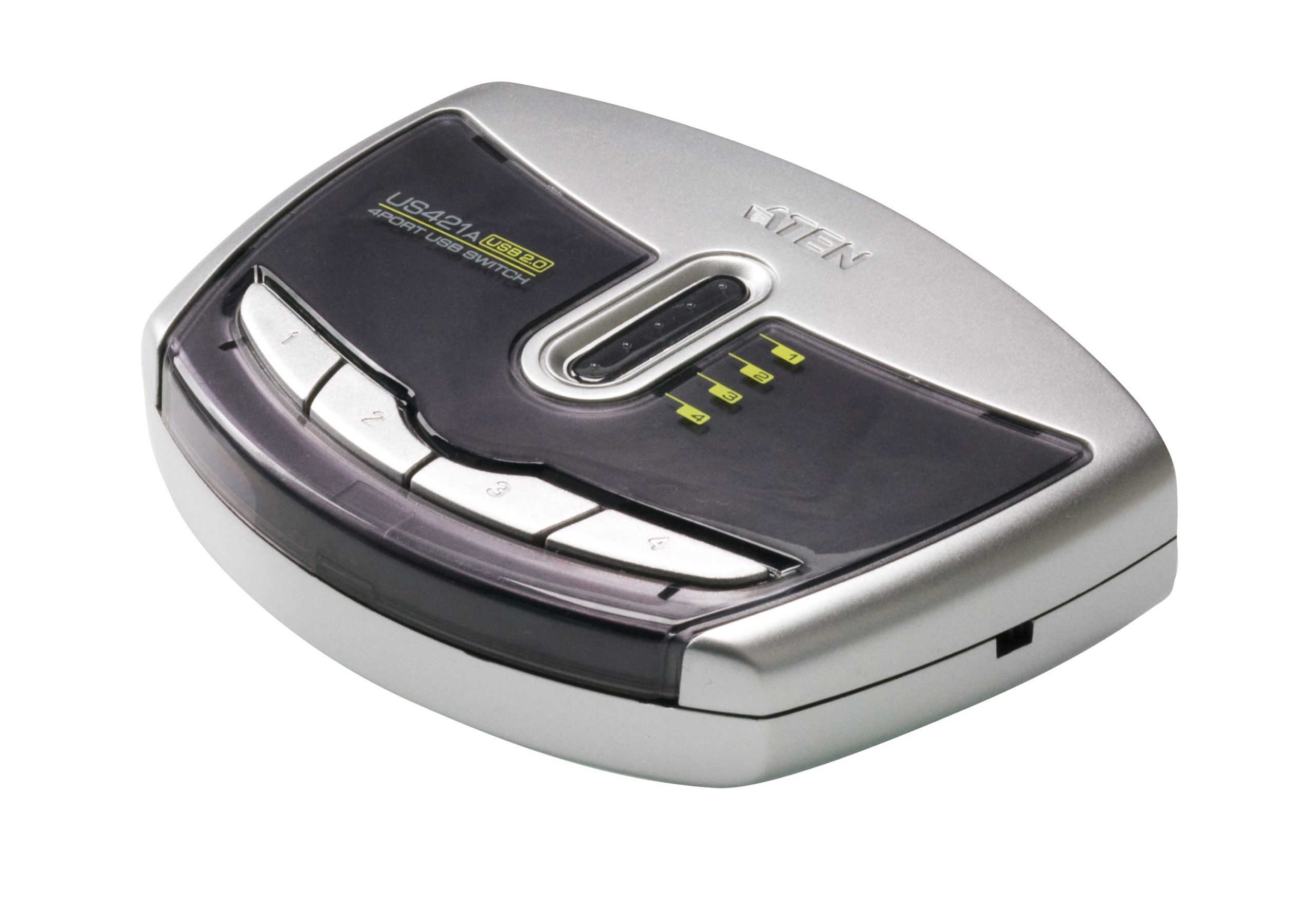

ATEN US421A
4-Port USB 2.0 Peripheral Switch
The peripheral focus can be given to a computer manually by using pushbuttons on the switch, using the software-based configuration utility, or by the Auto Switch function.
Compatible with both Windows and Mac, and with multifunction printer support, the US421A is the ideal way to share the latest USB 2.0 peripherals in a multimedia office environment.

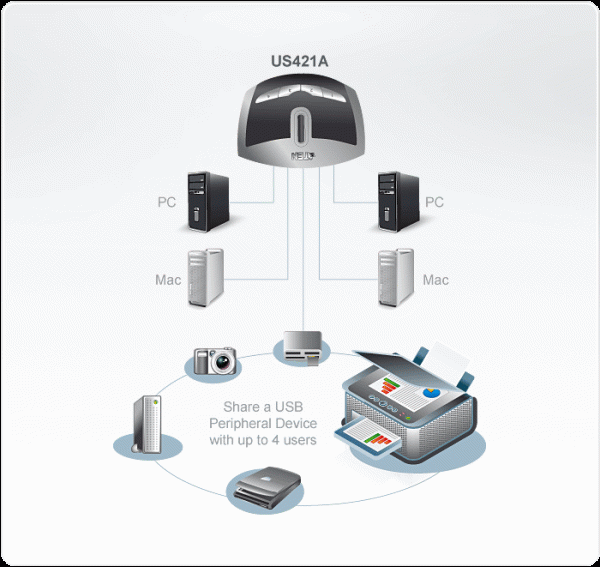

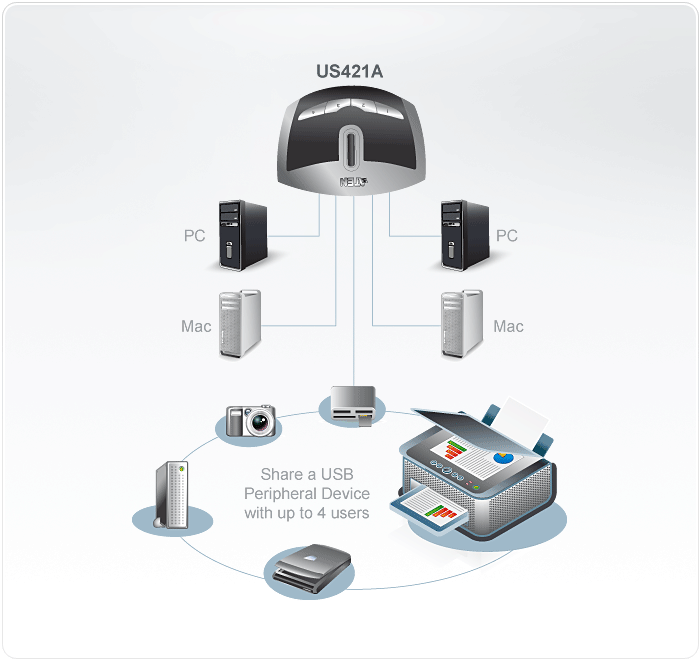

Diagram
Spesification
| Console Connections | 4 |
| Port Selection | Pushbuttons, Software, Auto Switch |
| Connectors | |
| Computer | 4 x USB Type B |
| Device | 1 x USB Type A |
| LEDs | |
| Devices | 1 (Orange) |
| Selected | 4 (Green) |
| Switches | 4 x Pushbutton |
| Power | USB Bus Powered |
| Environmental | |
| Operating Temperature | 0–40˚C |
| Storage Temperature | -20–60˚C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.10 kg ( 0.22 lb ) |
| Dimensions (L x W x H) | 10.40 x 7.96 x 2.20 cm (4.09 x 3.13 x 0.87 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Datasheet
us221a_421a_usb_peripheral_switche_ss_en.pdf (2.09 MB)
User Manual
| File Name | Release Date |
| us221a-us421a-user-manual-w.pdf (2.66 MB) | 2024-09-12 |
