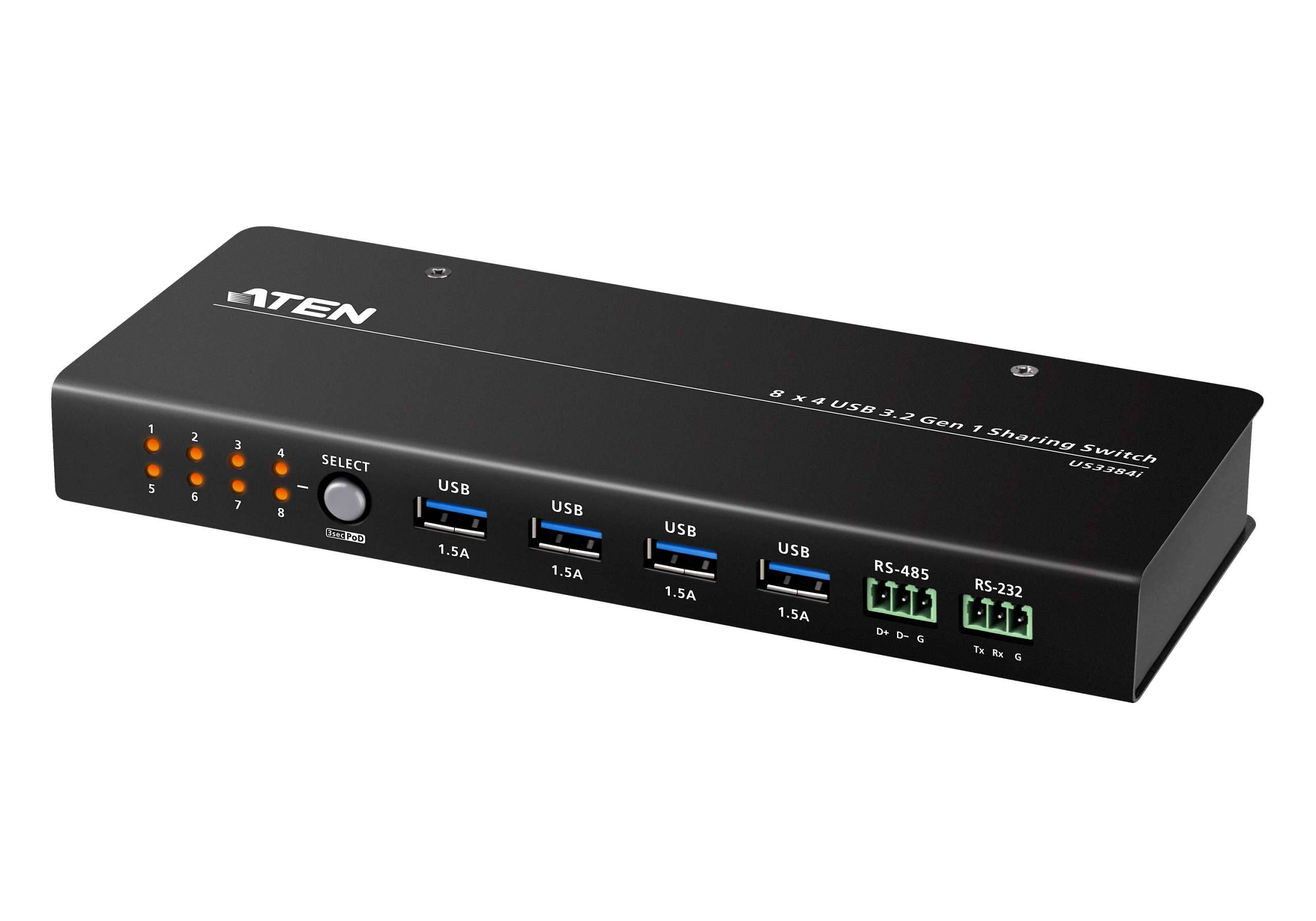

ATEN US3384I

8 x 4 USB 3.2 Gen 1 Sharing Switch

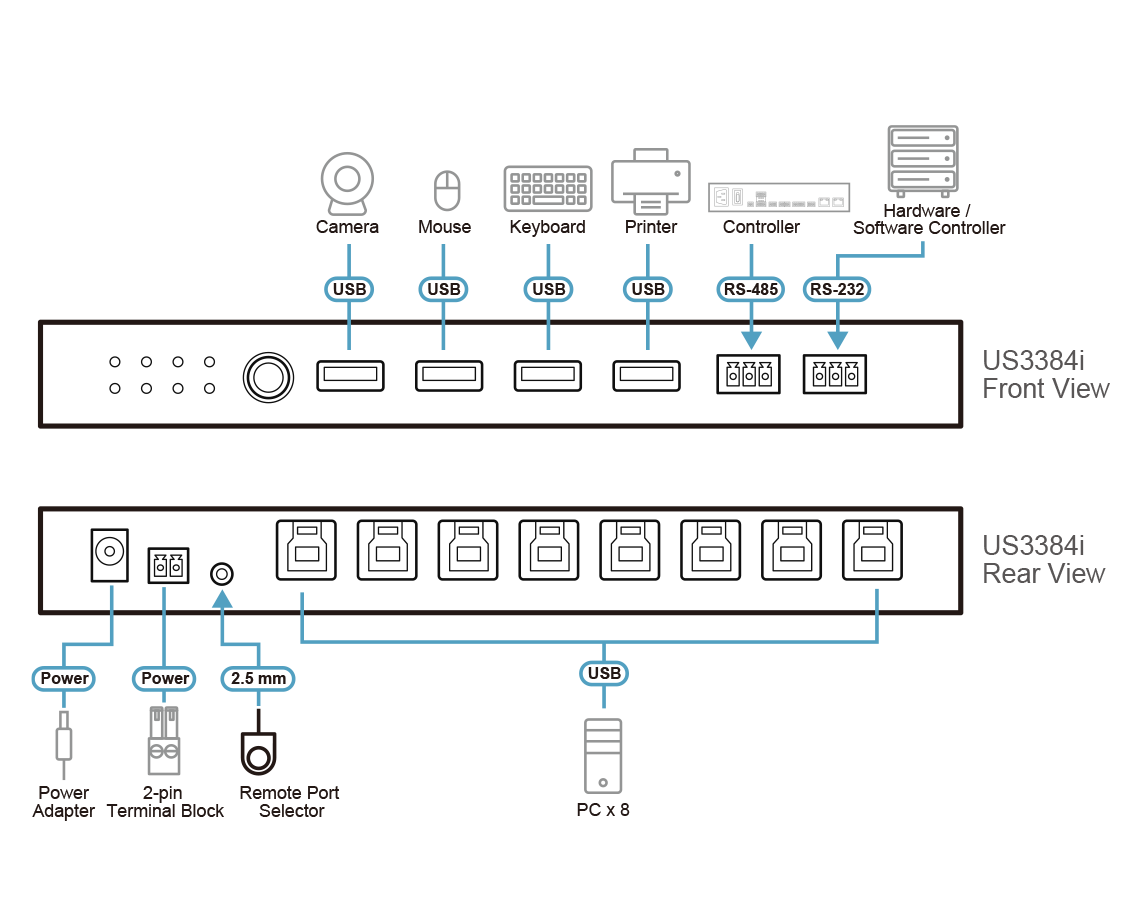

Built to take your BYOM/BYOD experience to the next level, the US3384i allows sharing of up to 4 USB 3.2 devices, such as keyboards, mice, cameras, speakerphones, and sound bars, among 8 PCs to declutter workspaces while permitting smooth USB content sharing across multiple meeting participants.

Conferences are kept disruption-free thanks to its blazing fast bandwidth speed of 5 Gbps and the backward compatibility with USB 2.0/1.1 devices, ensuring swift data transmission. In addition, the US3384i boasts versatile port selection methods, including the pushbutton on the front, the RS-232/RS-485 serial commands, and the external remote port selector*, which add more flexibility to its operation. The US3384i supports Power on Detection function, which automatically switches the PC focus to the last plugged-in/poweredon host device. What is more, the priority port preference is configurable, allowing the focus to switch to a secondary USB host when the primary one is lost. The front-panel port status LEDs illuminate to indicate which one of the PCs connected to the US3384i is having the focus at a glance.

In terms of installation, the US3384i comes with plug-and-play support on Windows and macOS operating systems, meaning no drivers are needed. It is also hot-pluggable, so users can connect/disconnect the host devices dynamically to the US3384i without powering off the switch. The case is constructed with premium metal for enhanced durability and supports wall-mounting to meet more installation requirements.

*The remote port selector is sold separately. Please contact your ATEN dealer for product information.

• Allows sharing of up to 4 USB 3.2 devices among 8 PCs
• Bandwidth speed of 5 Gbps and backward compatibility with USB 2.0/1.1 to ensure swift data transmission

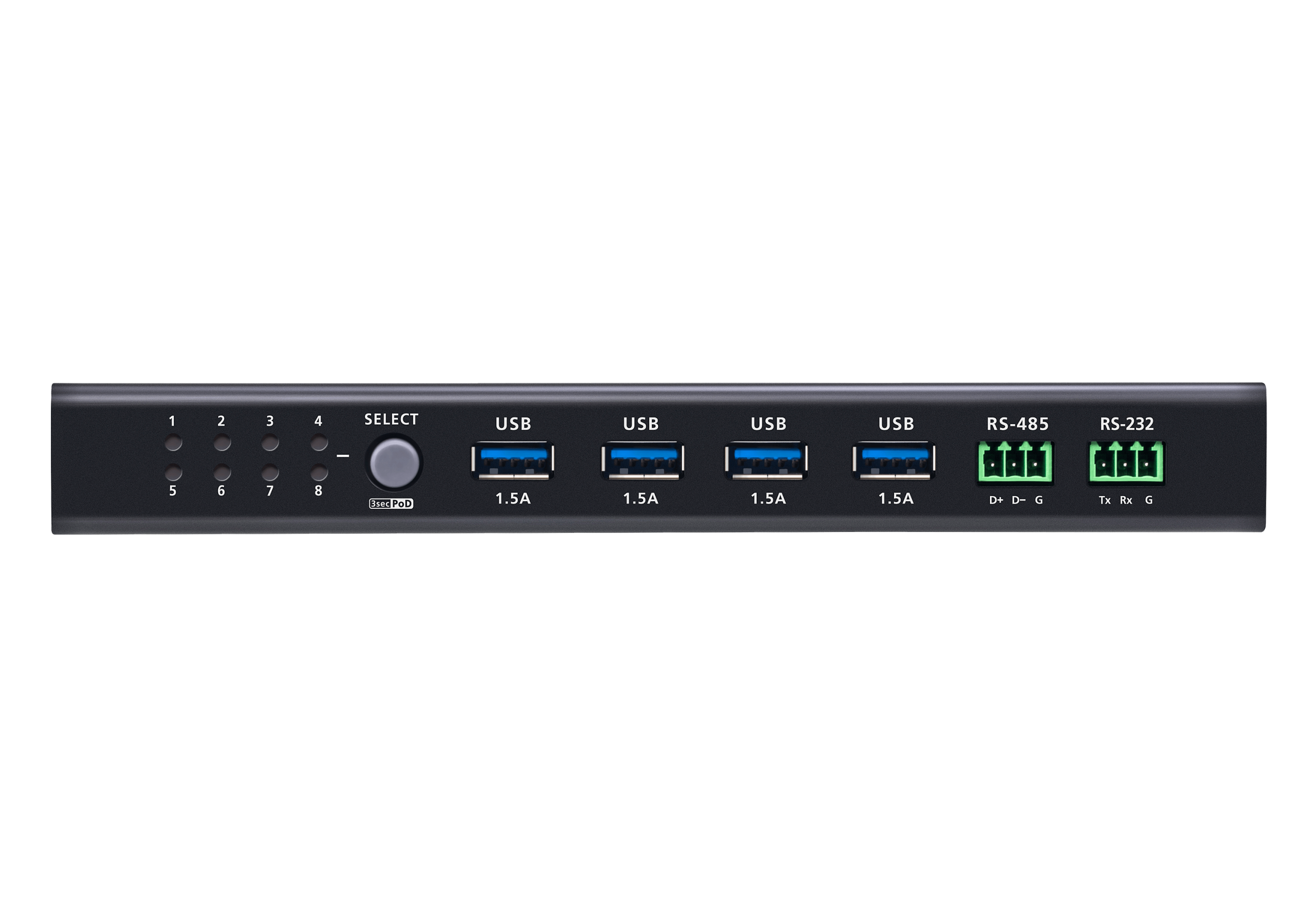

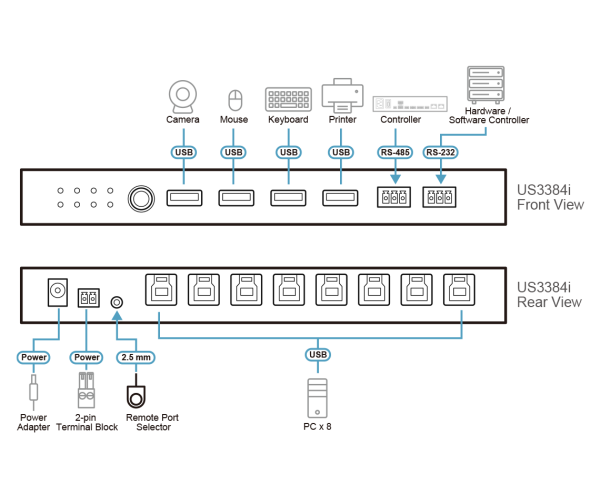

• Versatile port selection methods – front panel pushbutton, RS-232/RS-485 serial commands, and external remote port selector¹
• Power on Detection
  – Automatically switches the PC focus to the last plugged-in/powered-on host device
  – Configurable priority port preference – allows the focus to switch to a secondary USB host when the primary one is lost
• Front panel port status LEDs – indicate which one of the PCs connected to the US3384i is having the focus at a glance
• Supports USB BC 1.2 to ensure sufficient power for downstream USB devices
• Overvoltage protection circuit – extends device lifespan and minimizes risks of electrical hazards/explosions led by voltage spikes surpassing safe operating limits

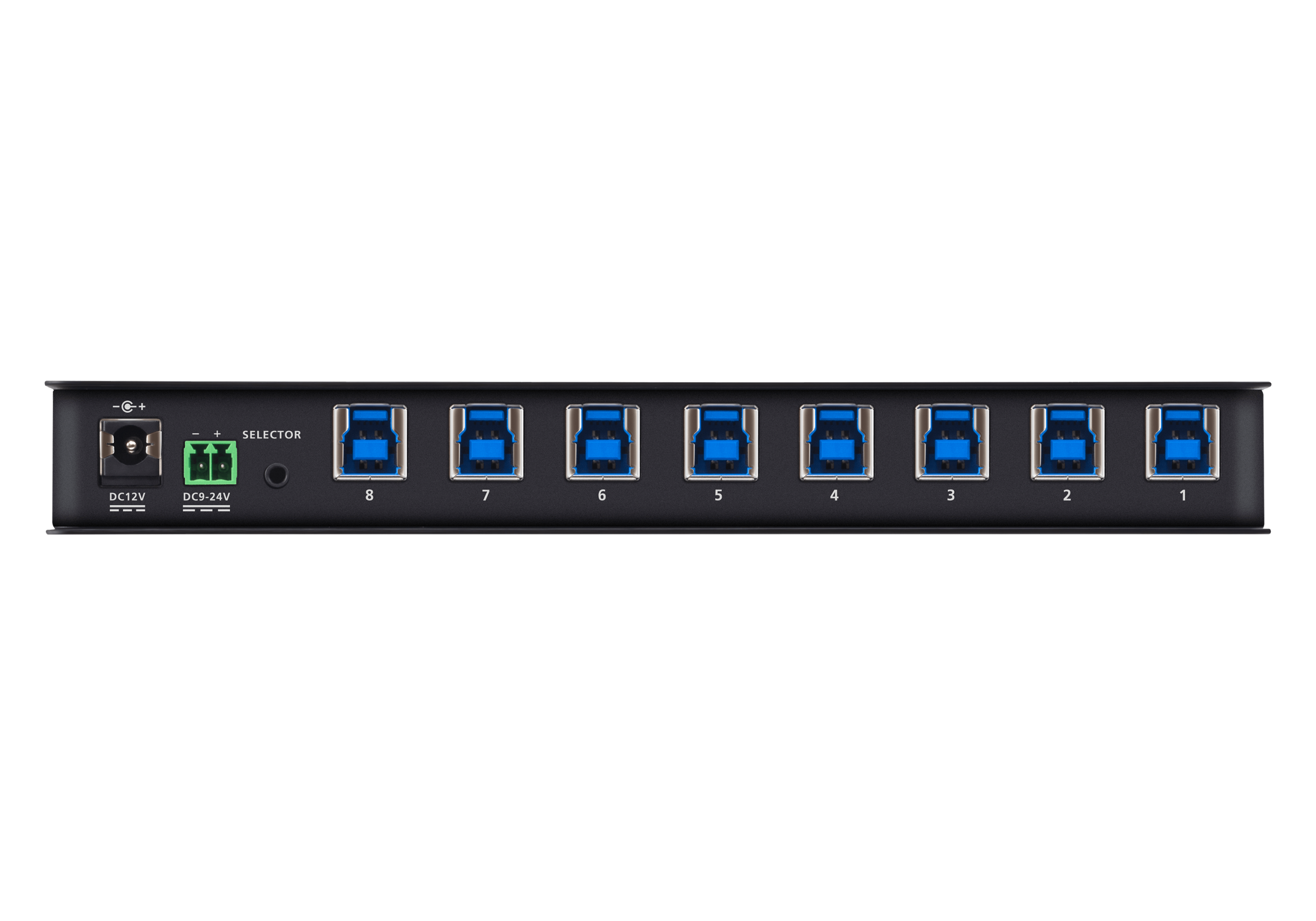

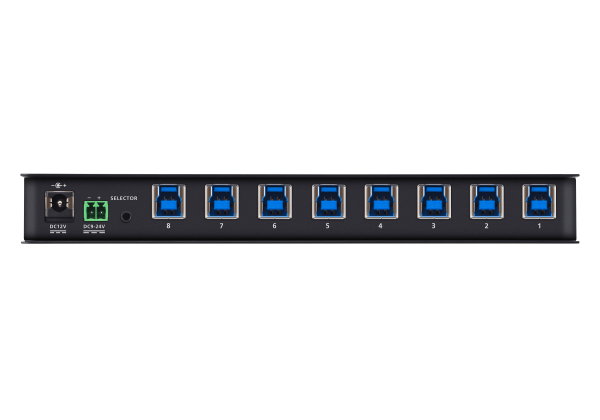

• Supports DC 9 – 24V power input through terminal block²
• Plug-and-play on Windows and macOS operating systems – no drivers are needed
• Hot-pluggable – users can connect/disconnect the host devices dynamically to the US3384i without powering off the switch
• Wall-mountable case constructed with premium metal for enhanced durabilityNote:
  1. The remote port selector is sold separately, please contact your ATEN dealer for product information.
  2. Supports either of the following power supplies:
  (1) DC terminal block
  (2) DC power jack (The power adapter (0AD8-8012-50M2) is sold separately, please contact your ATEN dealer for product information.)
