ATEN PE6324L
30A/32A 24-Outlet Metered & Switched Low Profile eco PDU
• 0U 24-Outlet low profile eco PDU
• Bank level metering
• Supports Proactive Overload Protection (POP) / Outlet Switch Control

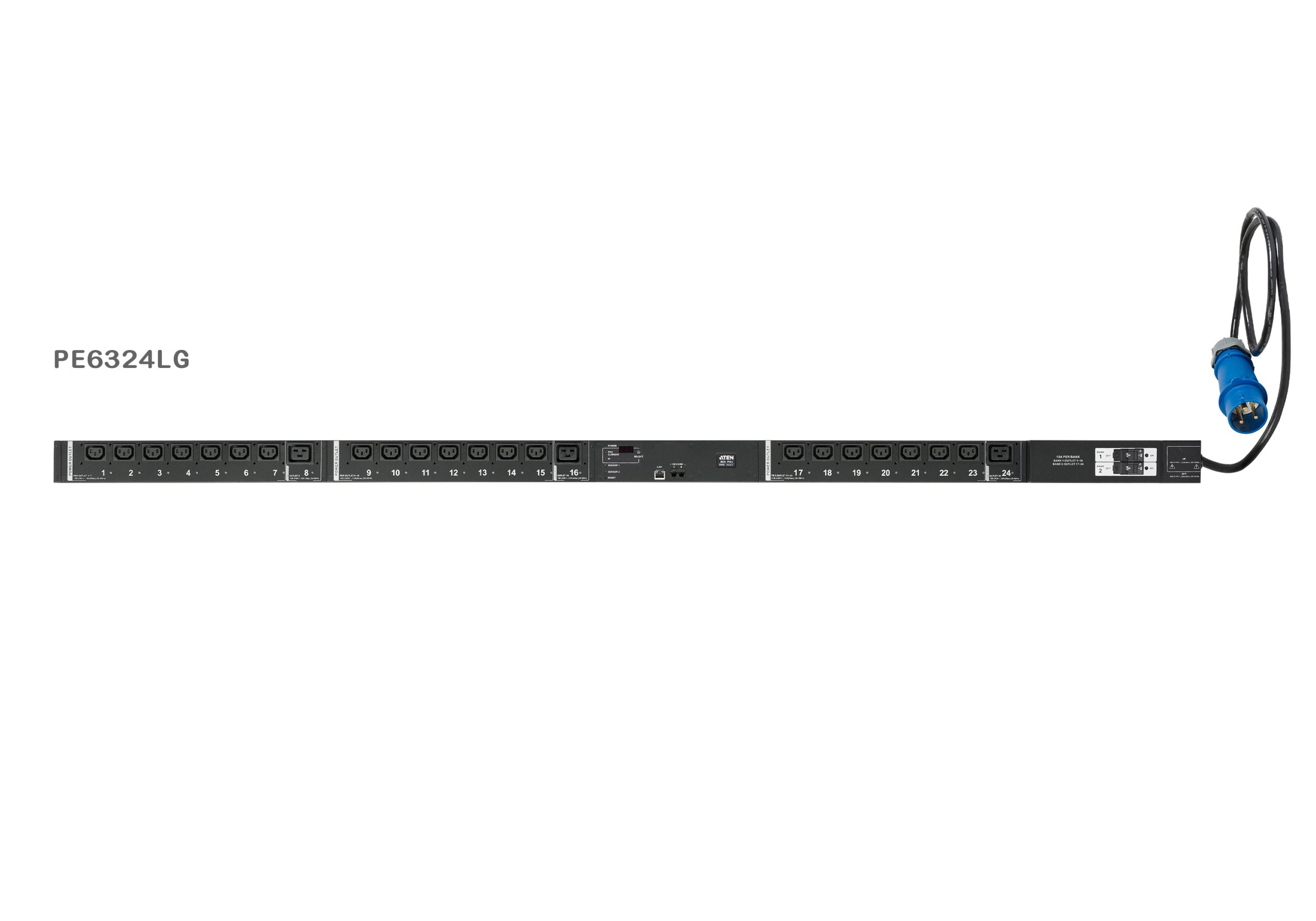

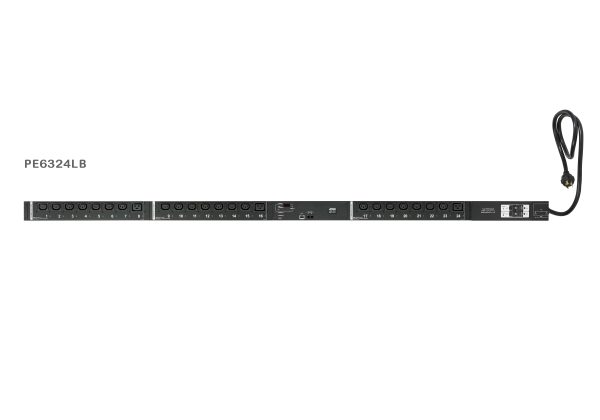

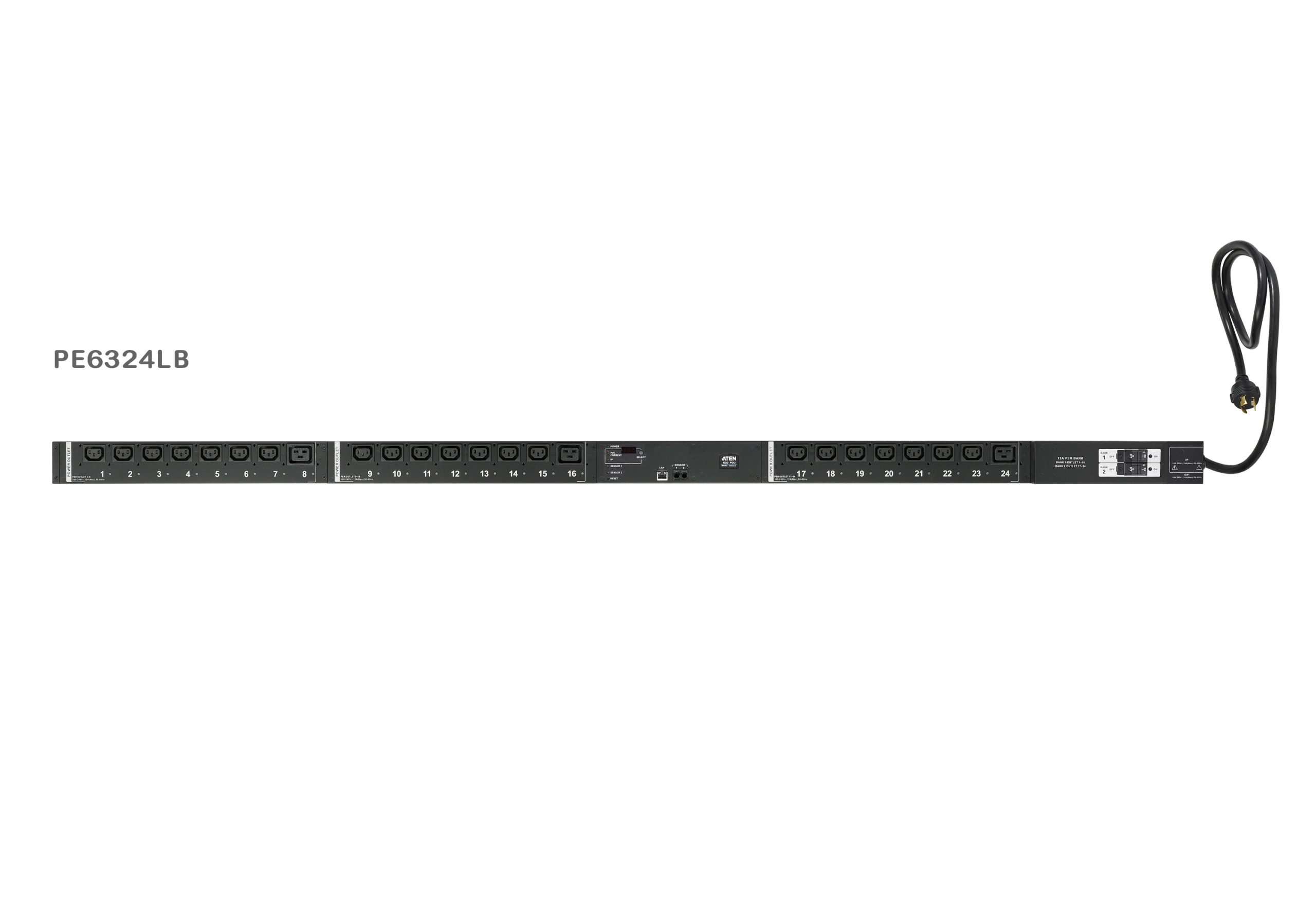

The PE6324L PDUs are low-profile units featuring 24 AC outlets, coming available in various IEC or NEMA socket configurations. This series has a smaller input region on the PDU to provide more installation space for data centers.

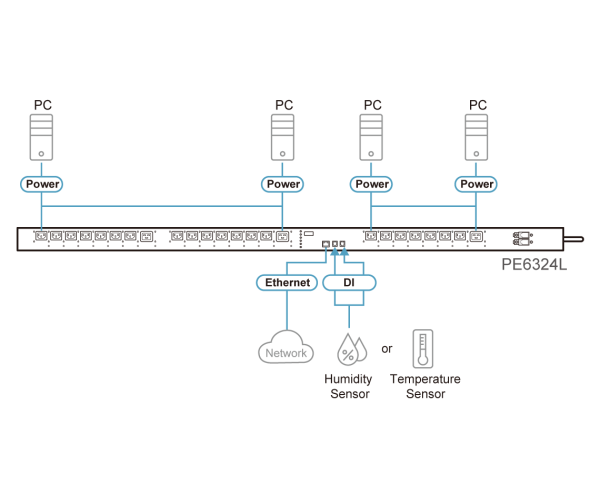

The PE6324L eco PDUs offers remote power control with real-time power measurement – allowing users to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP / IP connection. The power status of each outlet can be set individually, allowing users to switch each device On / Off.
This series supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco DC (Energy & DCIM Management Web GUI), delivering an easy method for multiple device management while offering an intuitive and user-friendly GUI that allows users to configure a PDU device and monitor power status of the equipment connected to it.
Spesification
| Function | PE6324LB | PE6324LG |
| Electrical | ||
| Nominal Input Voltage | 100 – 240 VAC | 100 – 240 VAC |
| Maximum Input Current | 30A (Max); 24A (UL-derated) | 30A(Max) |
| Input Frequency | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA L6-30P | IEC 60309 32A |
| Input Power | 6240 VA(Max) ; 4992 VA(UL de-rated) |
7360 VA(Max) |
| Outlet Type | Total: 21 x IEC320 C13 + 3 x IEC320 C19 Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19 Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19 Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19 |
Total: 21 x IEC320 C13 + 3 x IEC320 C19 Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19 Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19 Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19 |
| Nominal Output Voltage | 100 – 240 VAC | 100 – 240 VAC |
| Maximum Output Current (Outlet) | C13: 15A (Max) ; 12A (UL de-rated) C19: 20A (Max) ; 16A (UL de-rated) |
C13: 10A(Max) C19: 16A(Max) |
| Maximum Output Current (Bank) | 15A (Max) ; 12A (UL de-rated) | 16A(Max) |
| Maximum Output Current (Total) | 30A (Max) ; 24A (UL de-rated) | 30A(Max) |
| Breakers | 2 x 16A Slim Breaker | 2 x 16A Slim Breaker |
| Metering | Bank Level Current, Voltage, VA , PF and kWh Monitoring | Bank Level Current, Voltage, VA , PF and kWh Monitoring |
| Outlet Switching | Yes | Yes |
| Environment Sensor Ports | 2 | 2 |
| Metering Accuracy | Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% |
Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% |
| Physical Properties | ||
| Dimensions (L x W x H) | 177.50 x 6.60 x 4.40 cm (69.88 x 2.6 x 1.73 in.) |
177.50 x 6.60 x 4.40 cm (69.88 x 2.6 x 1.73 in.) |
| Weight | 5.76 kg ( 12.69 lb ) | 5.76 kg ( 12.69 lb ) |
| Power Cord Length | 1.6 m | 1.6 m |
| Environmental | ||
| Temperature (Operating / Storage) | 0–50°C / -20–60°C | 0–40°C / -20–60°C |
| Humidity (Operating & Storage) | 0–80% RH, Non-Condensing | 0–80% RH, Non-Condensing |
| Compliance | ||
| EMC Verification | FCC, Others by Request | CE, C-Tick, Others by Request |
| Safety Verification | By Request | CE-LVD, Others by Request |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
