ATEN PE6208AV
8-Outlet eco PDU

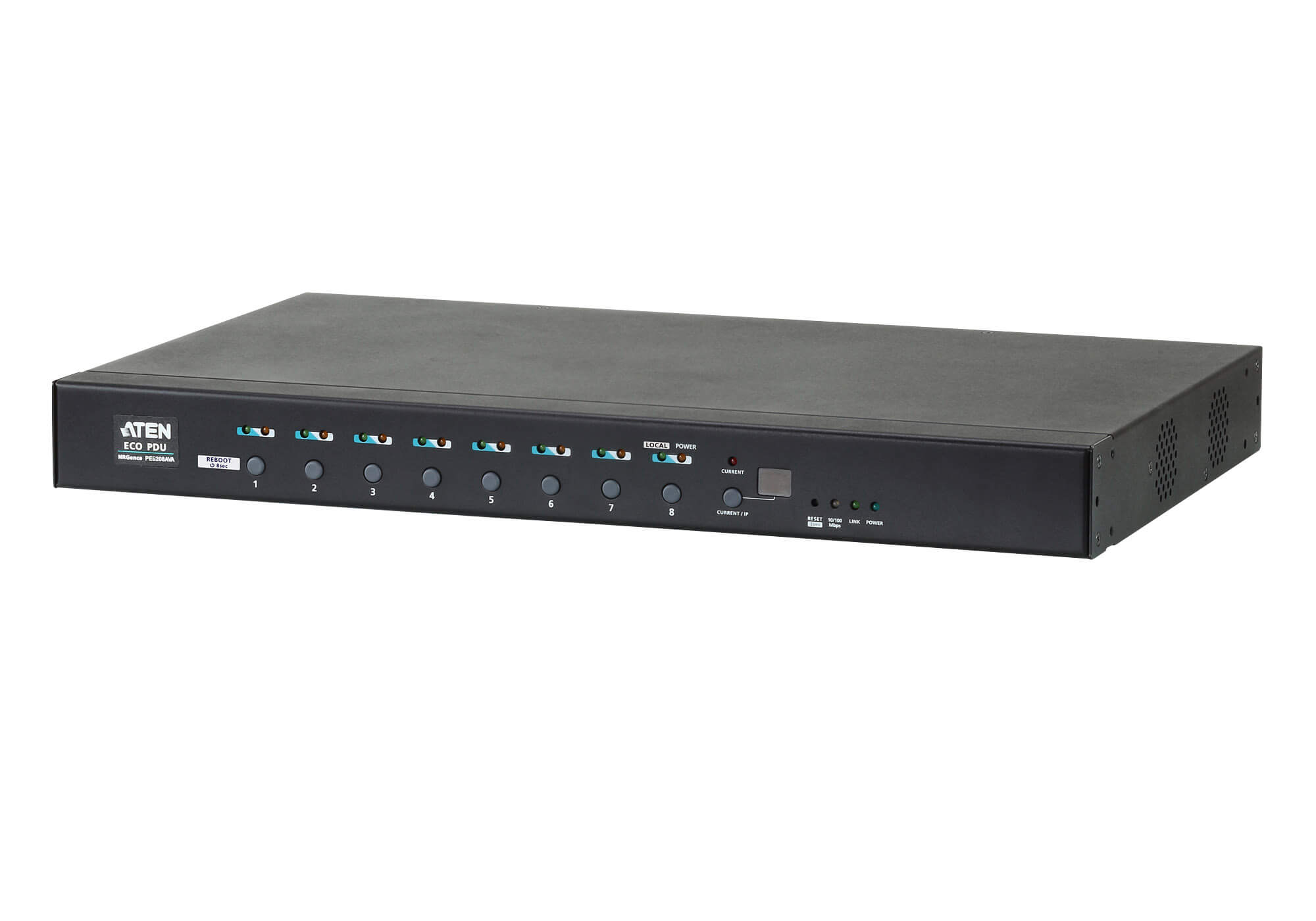

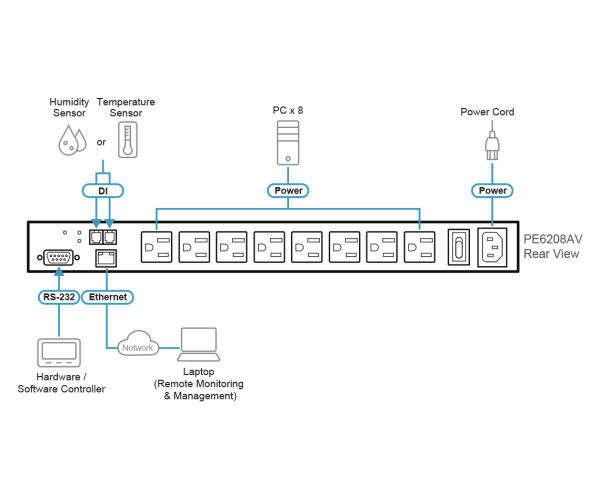

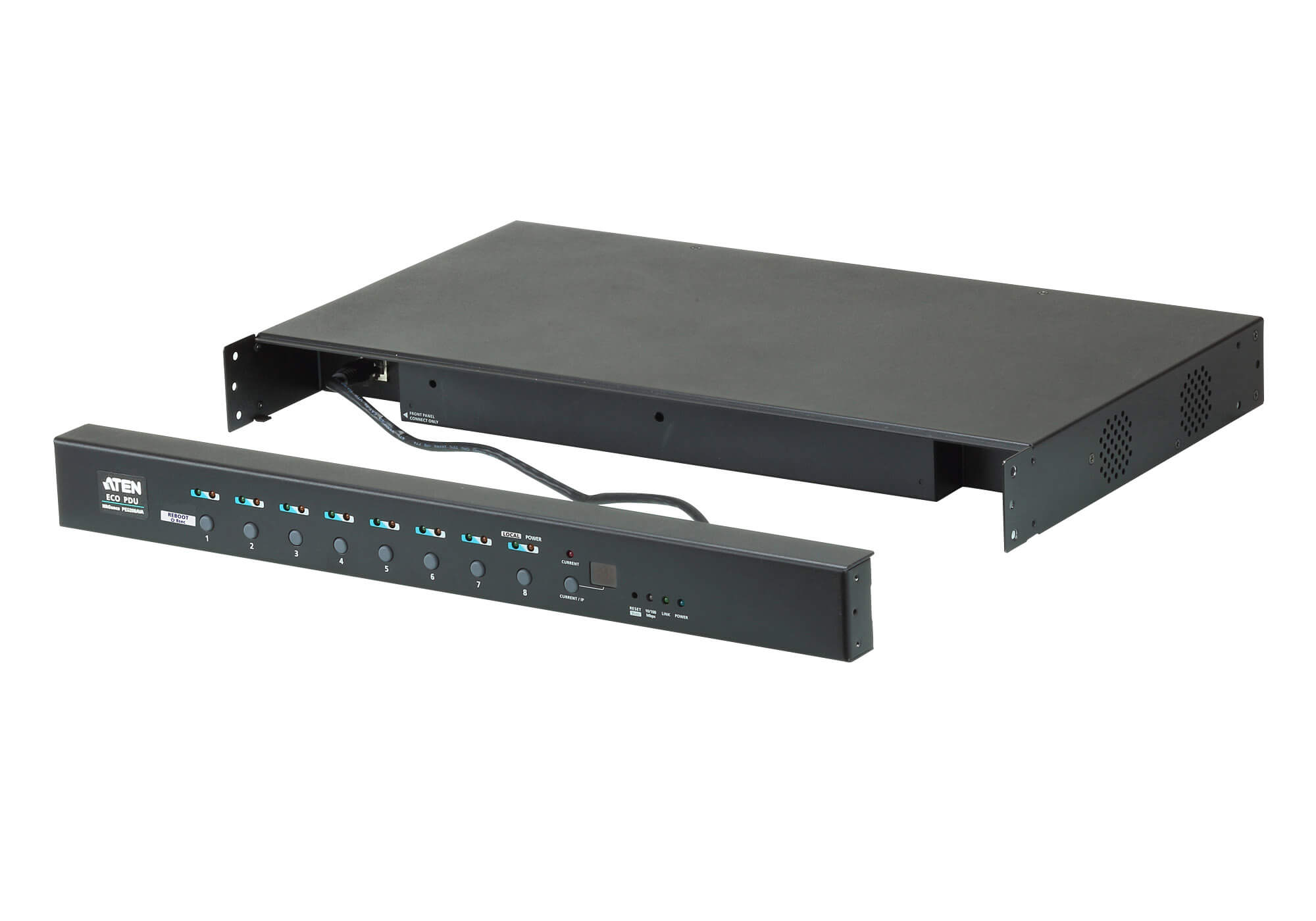

Ideal for Pro-A/V applications, the ATEN NRGence™ PE6208AV eco PDUs are intelligent, 1U rack PDUs that contain 8 AC outlets available in an IEC socket configuration. The unique design with detachable front panel is convenient and mounts with different Pro-A/V equipment in 19” racks with different depths. In addition to remotely controlling individual outlets over the LAN, the front panel pushbuttons offer an extra option to control the outlets locally, allowing the flexibility to easily shutdown Pro-A/V equipment on the spot or from a remote location – for reduced power consumption. The outlets feature a sequential power-ON function that ensures Pro-A/V systems are powered on safely. Furthermore, compatibility with the ATEN Control System and Control4 libraries allow the PE6208AV to integrate with any Pro-A/V equipment for full control of all devices without complex programming.
The PE6208AV are optimal energy solutions for data centers as well. With the combination of ATEN eco PDUs and eco DC Energy Management software, a data center will be equipped with real-time monitoring, measurement, and analysis of energy consumption – with reports of power usage and PUE to meet the ISO 50001 requirements. These indices reflect the data center’s energy usage and offer energy saving suggestions for optimizing energy use and reducing costs.
Spesification
| Function | PE6208AVA | PE6208AVB | PE6208AVG | PE6208AVX |
| Electrical | ||||
| Nominal Input Voltage | 100 – 120 VAC | 100 – 240 VAC | 100 – 240 VAC | 100-240 VAC |
| Maximum Input Current | 20A(Max), 16A(UL de-rated) | 20A(Max)16A(UL de-rated) | 16A(Max) | 16A(Max) |
| Input Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz | 50-60 Hz |
| Input Connection | A/J:NEMA L5-20P A2/J2: NEMA 5-20P |
NEMA 6-20P | IEC 60320 C20 | Terminal(3P) |
| Input Power | 2400VA(Max),1920VA(UL de-rated) | 4600VA(Max),3680VA(UL de-rated) | 3680 VA(Max) | 4800VA(Max) |

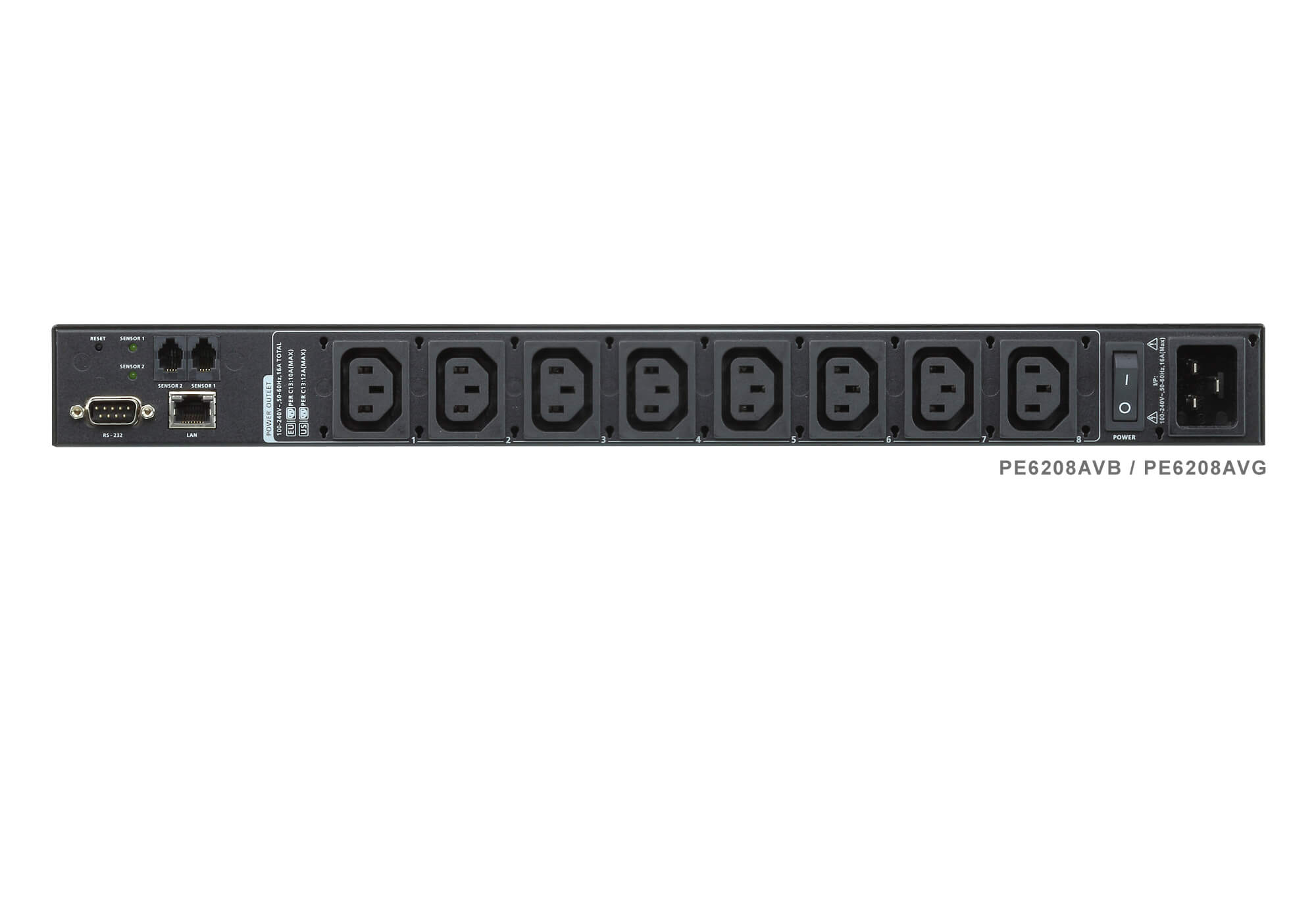

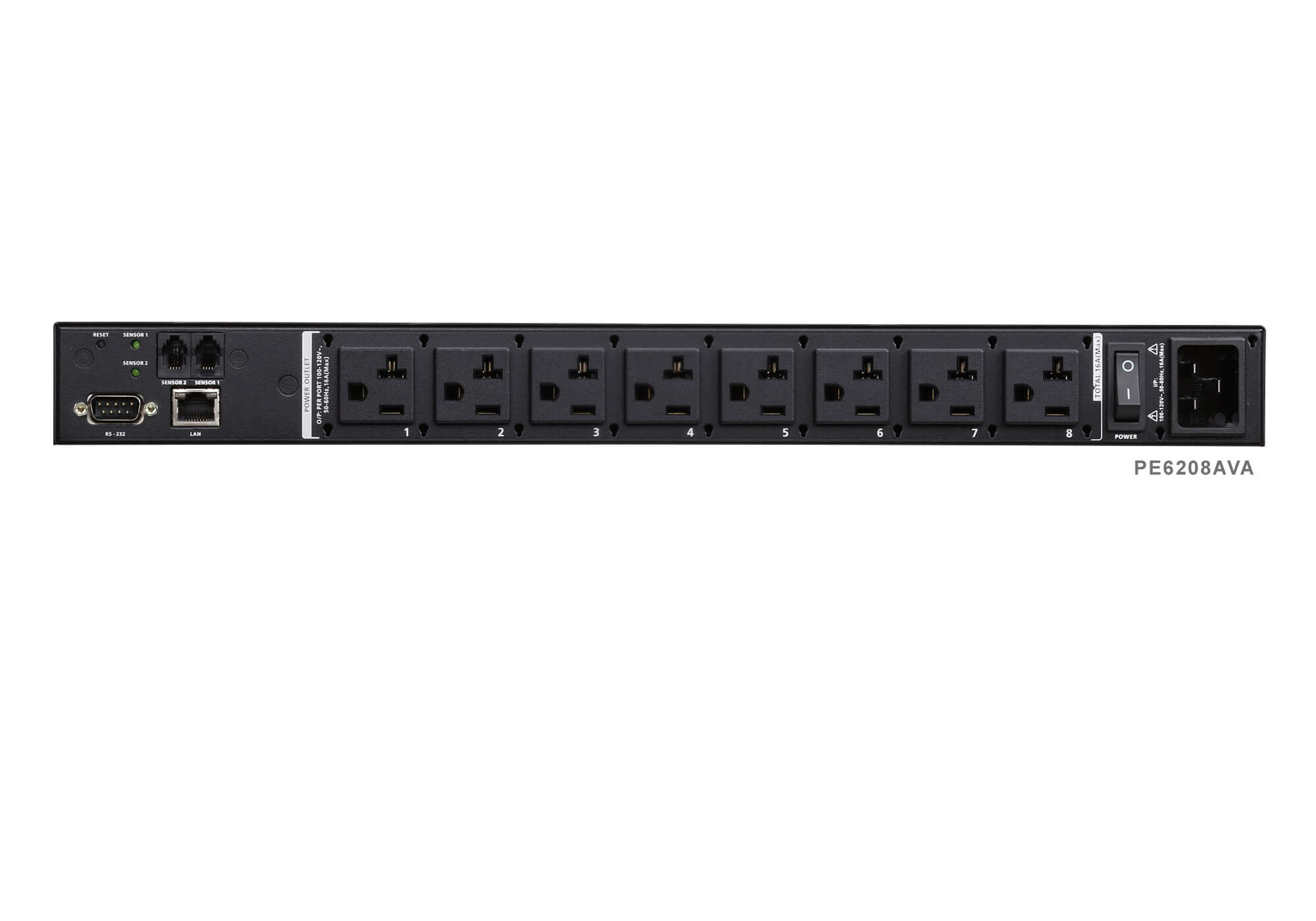

| Outlet Type | Total : 8 x NEMA 5-20R | Total: 8 x IEC320 C13 | Total: 8 x IEC320 C13 | Total : 8 x Terminal(3P) |
| Nominal Output Voltage | 100 –120 VAC | 100 – 240 VAC | 100 – 240 VAC | 100-240 VAC |
| Maximum Output Current (Outlet) | NEMA 5-20R : 20A (Max) 16A (UL de-rated) | C13: 15A(Max) 12A(UL de-rated) | C13: 10A | 16A (Max) |
| Maximum Output Current (Bank) | 20A (Max) 16A (UL de-rated) | 20A (Max) 16A (UL de-rated) | 16A(Max) | 16A (Max) |
| Maximum Output Current (Total) | 20A (Max) 16A (UL de-rated) | 20A (Max) 16A (UL de-rated) | 16A(Max) | 16A (Max) |
| Metering | Per Bank level Current, Voltage, VA , PF and KWh Monitoring | Per Bank level Current, Voltage, VA , PF and KWh Monitoring | Bank Level Current, Voltage, VA , PF and kWh Monitoring | Per Bank level Current, Voltage, VA , PF and KWh Monitoring |
| Outlet Switching | Yes | Yes | Yes | Yes |
| Environment Sensor Ports | 2 | 2 | 2 | 2 |
| Metering Accuracy | Voltage range: 100VAC ~ 250VAC +/-1% Power range: 100W ~ 5000W +/- 2% Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% |
Voltage range: 100VAC ~ 250VAC +/-1% Power range: 100W ~ 5000W +/- 2% Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% |
“Voltage range: 100VAC ~ 250VAC +/-1% Power range: 100W ~ 5000W +/- 2% Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%” |
Voltage range: 100VAC ~ 250VAC +/-1% Power range: 100W ~ 5000W +/- 2% Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% |
| Communication | ||||
| 10/100 Mbps | 1 x RJ-45 | 1 x RJ-45 | 1 x RJ-45 | 1 x RJ-45 |
| RS-232 | 1 x DB-9 | 1 x DB-9 | 1 x DB-9 | 1 x DB-9 |
| Switches | ||||
| Power | Yes | Yes | Yes | Yes |
| Physical Properties | ||||
| Dimensions (L x W x H) | 43.24 x 36.39 x 4.40 cm (17.02 x 14.33 x 1.73 in.) |
43.24 x 36.39 x 4.40 cm (17.02 x 14.33 x 1.73 in.) |
43.24 x 36.39 x 4.40 cm (17.02 x 14.33 x 1.73 in.) |
43.24 x 36.39 x 4.40 cm (17.02 x 14.33 x 1.73 in.) |
| Weight | 4.67 kg ( 10.29 lb ) | 4.67 kg ( 10.29 lb ) | 4.67 kg ( 10.29 lb ) | 4.67 kg ( 10.29 lb ) |
| Power Cord Length | 3 m | 3 m | 3 m | N.A. |
| Environmental | ||||
| Temperature (Operating / Storage) | 0 – 50℃ / -20 – 60℃ | 0 – 50℃ / -20 – 60℃ | 0–40°C / -20–60°C | 0 – 50℃ / -20 – 60℃ |
| Humidity (Operating & Storage) | 0–80% RH, Non-Condensing | 0–80% RH, Non-Condensing | 0–80% RH, Non-Condensing | 0–80% RH, Non-Condensing |
| Compliance | ||||
| EMC Verification | FCC, J55032 | FCC Others by Request | CE-EMC, FCC, J55032 Others by Request | FCC,CE |
| Safety Verification | PSE | Others by Request | CE-LVD, PSE, Others by Request | CE,LVD |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |||

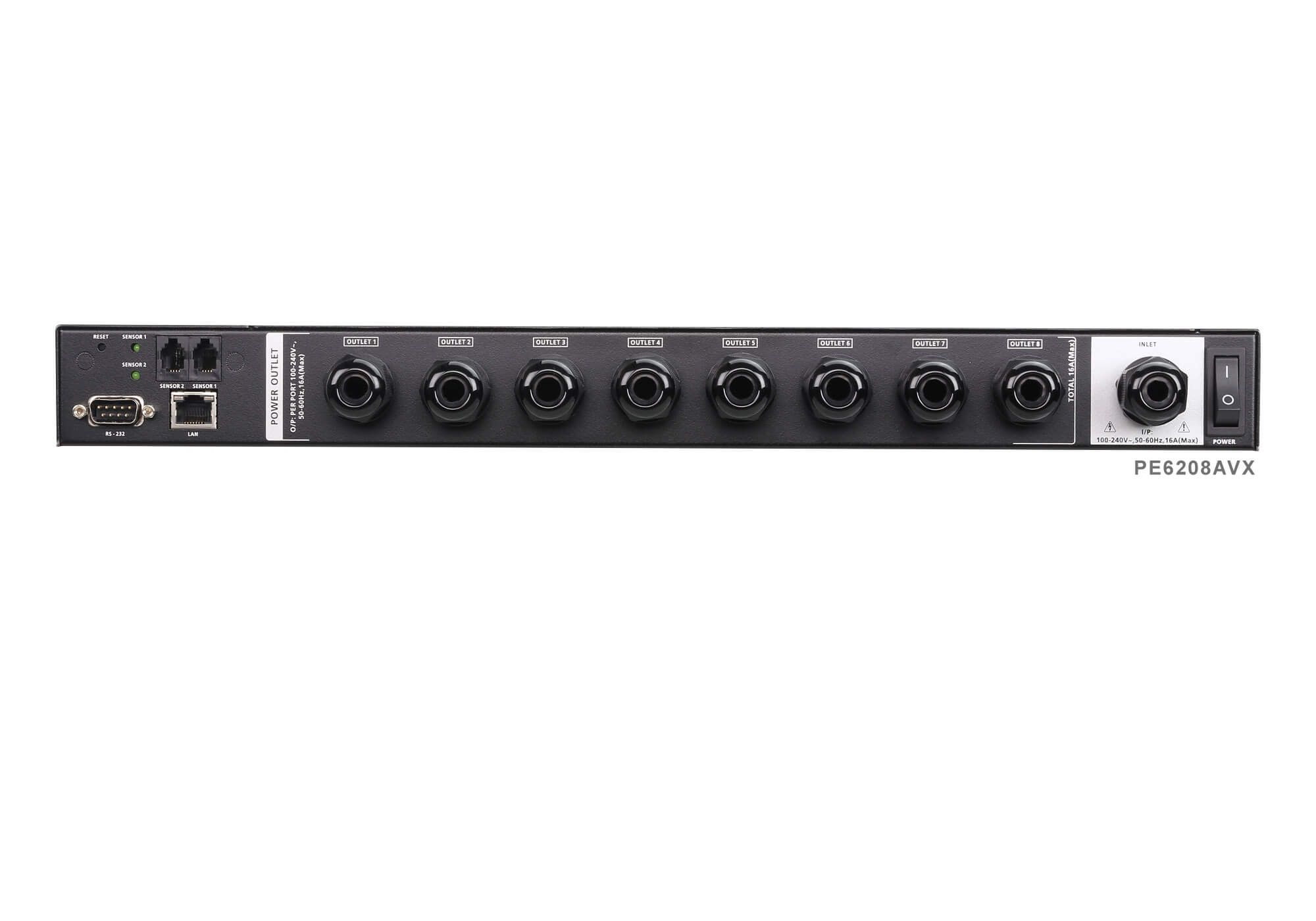

PE6208AVX, one of the variants of the series, is discontinued.
