ATEN CS1794-AT-G
4-Port USB HDMI KVMP Switch

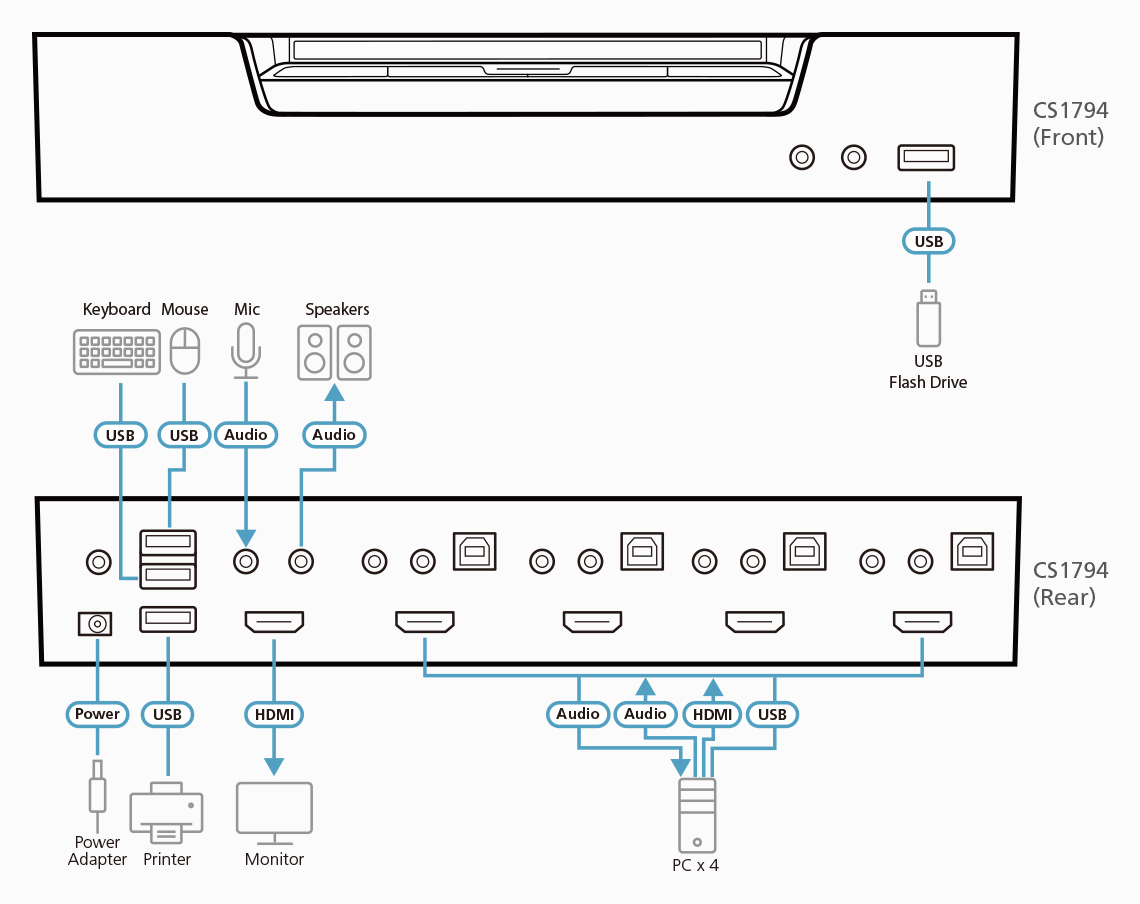

4 PortThe CS1794 allows quick access to 4 HDMI-interfaced PCs via one KVM console and flexible media sharing via a 2-port USB hub, which helps to expand your desktop workspace while keeping it tidy and organized for improved productivity. With the shared FHD video quality and speaker set, multitasking between computers can be more enjoyable. KVMP Switch
Smooth Cross-Platform Integration
The CS1794 enables the integration of different computer systems (Windows, Mac and Linux) that are accessible from one KVM console.
Video DynaSync™
ATEN’s patented Video DynaSync™ ensures correct resolutions and display configurations are maintained when switching between ports under all operating systems, while also eliminating boot-up display problems and assuring smooth desktop operation.
Specifications
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton |
| Connectors | |

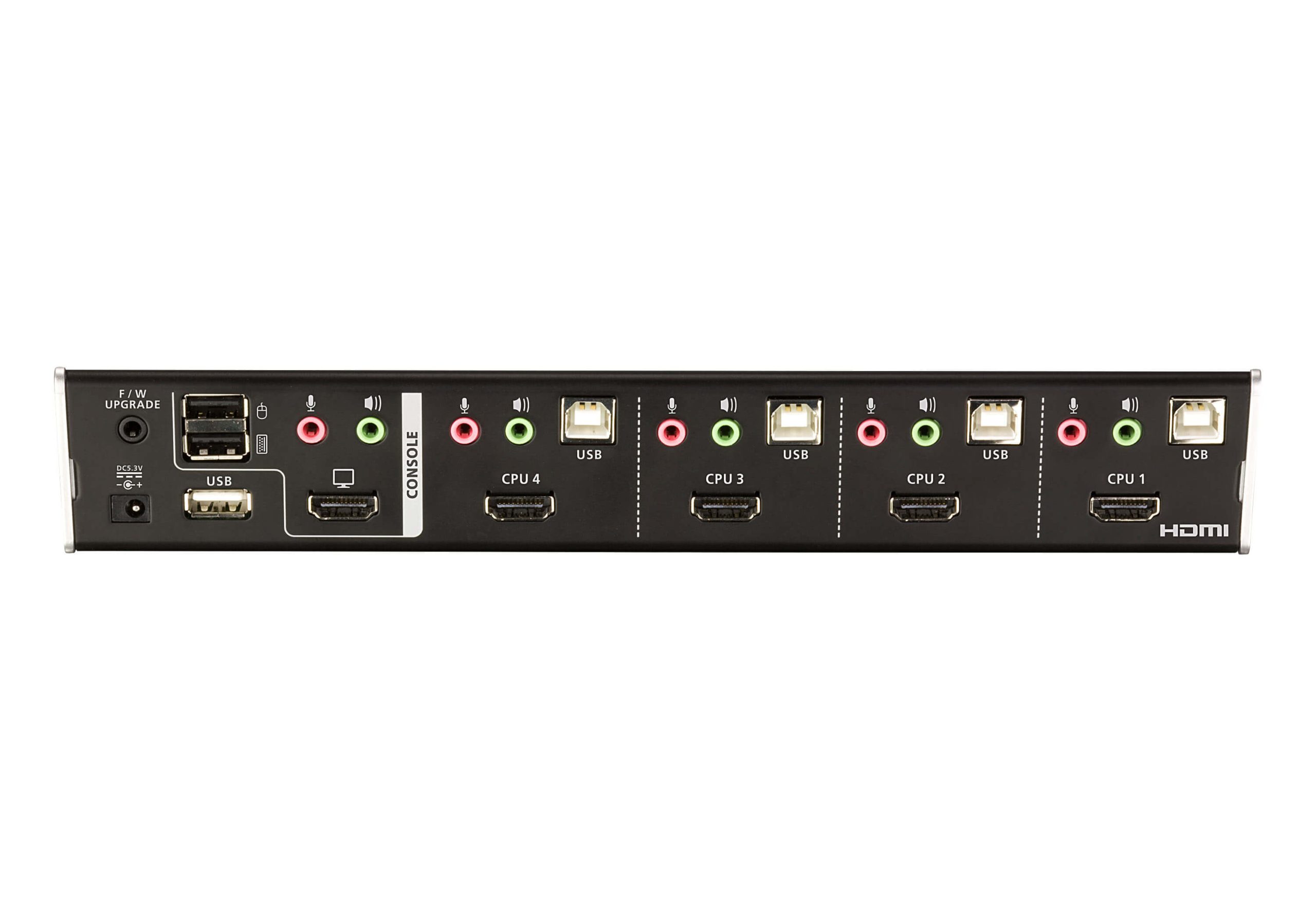

| Console Ports | 2 x USB Type A Female (rear panel) 1 x HDMI Female (Black) 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear) |
| KVM Ports | 4 x USB Type B Female 4 x HDMI Female (Black) 4 x 3.5 mm Audio Jack Female (Green) 4 x 3.5 mm Audio Jack Female (Pink) |
| Firmware Upgrade | 1 x 3.5 mm Audio Jack Female (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (1 x front panel; 1 x rear panel) |
| Switches | |
| Selected | 5 x Pushbutton |
| LEDs | |
| Audio | 5 (Green) |
| KVM | 5 (Orange) |
| USB | 5 (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz |
| Scan Interval | 1-99 seconds (default: 5 sec.) |
| Power Consumption | DC5.3V:4.88W:38BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal, Plastic |
| Weight | 0.53 kg ( 1.17 lb ) |
| Dimensions (L x W x H) | 26.23 x 7.24 x 4.40 cm (10.33 x 2.85 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
