ATEN CS1764A-AT-G
4 Port USB 2.0 DVI-I Single Link KVMP. 1920×1200. Audio (2.1 channel)
The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4-port KVM switch with a 2-port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1764A comes with ATEN’s Video DynaSync™ technology, enhancing display resolution, and power-on detection. This means that if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.

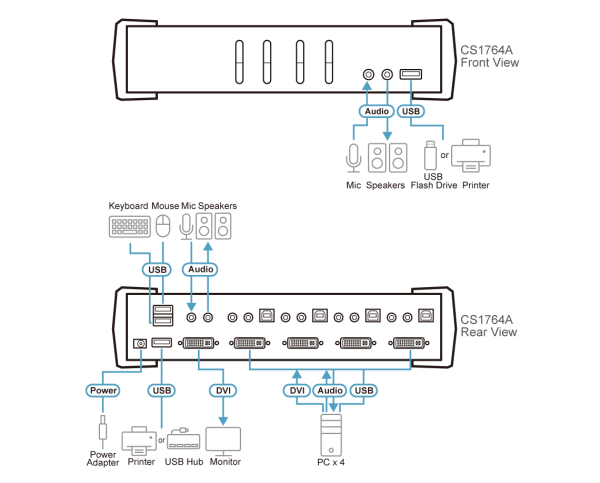

Functioning as a KVM switch, it allows users to access 4 computers using a single USB keyboard, USB mouse, and monitor console. Operating as a USB 2.0 hub, it enables each computer to access peripherals connected to the hub one at a time.
Package Contents
- 1x CS1764A USB 2.0 DVI KVMP™ Switch
- 4x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
- 1x Power Adapter
- 1x User Instructions
Features
- One USB console controls four DVI computers and two additional USB 2.0 devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Computer selection via front panel pushbuttons and hotkeys
- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support – Windows, Linux, Mac and Sun
- Superior video quality – 1920 x 1200, 60Hz; DDC2B
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- HDCP compliant
- Video DynaSync™ – stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
- Power on detection – if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Sun /Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- Firmware upgradable via USB* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
Specifications
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, Mouse |
| Connectors | |

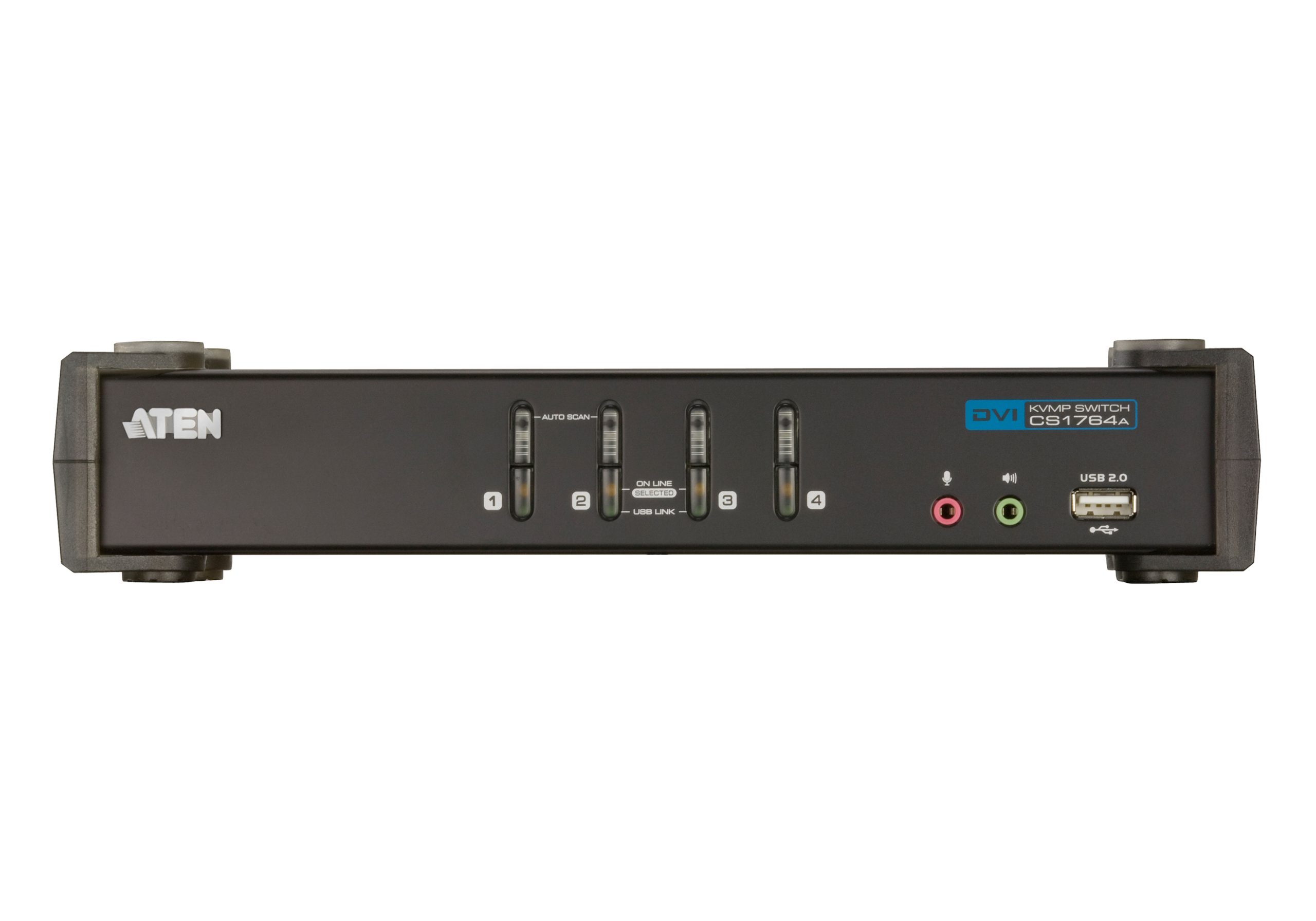

| Console Ports | 2 x USB Type A Female (White; front panel) 1 x DVI-I Female (White) 2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel) |

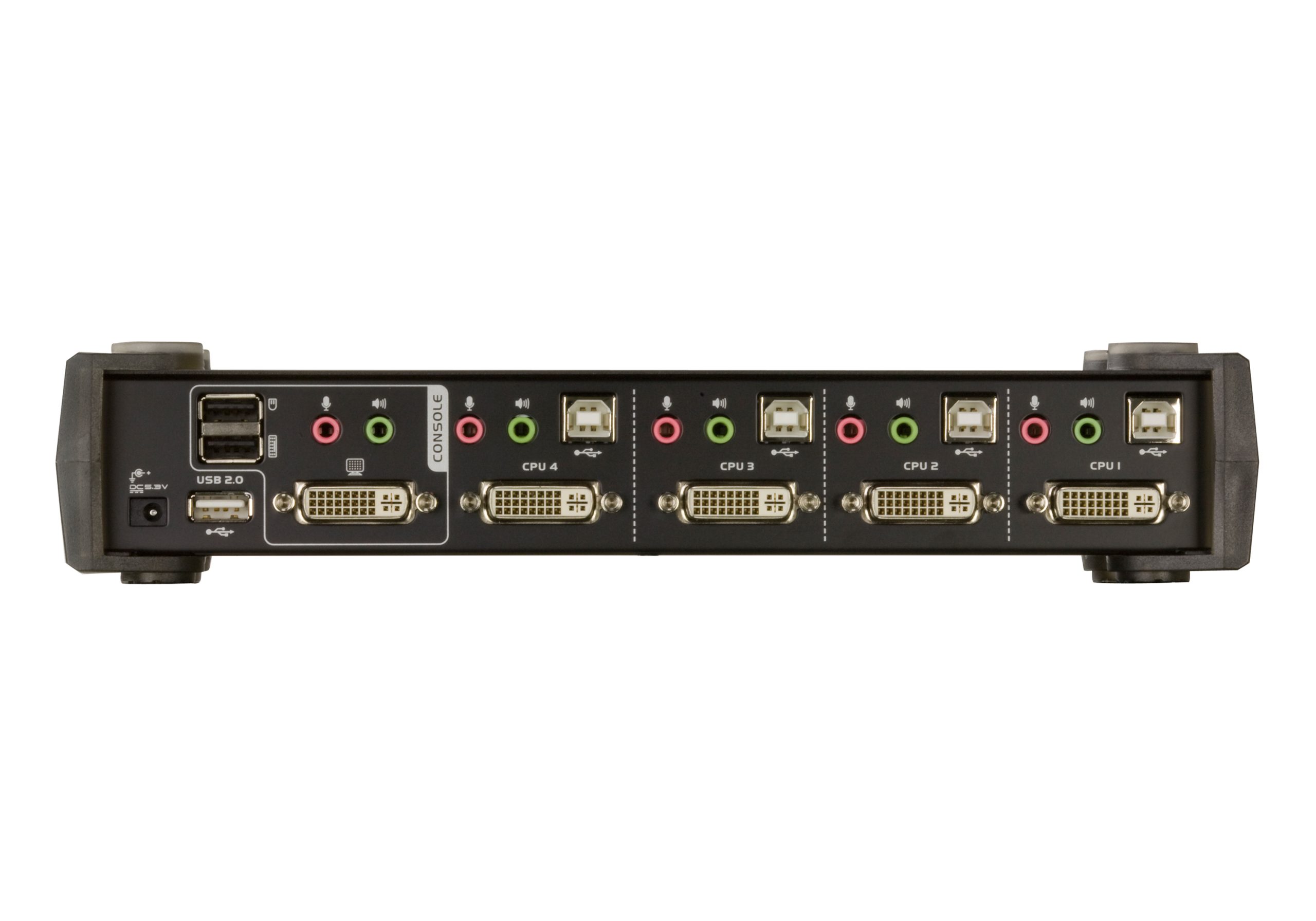

| KVM Ports | 4 x USB Type B Female (White) 4 x DVI-I Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (White; 1 x front panel, 1 x rear panel) |
| Switches | |
| Selected | 4 x Pushbutton |
| LEDs | |
| USB Link | 4 (Green) |
| On Line /Selected | 4 (Orange) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 1920 x 1200@ 60Hz; DDC2B |
| Scan Interval | 1–99 Seconds (Default: 5 sec.) |
| Power Consumption | DC5.3V:3.69W:43BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 50°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.94 kg ( 2.07 lb ) |
| Dimensions (L x W x H) | 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
