ATEN CL3800NW

Ultra Short Depth Dual Rail WideScreen LCD Console (USB, HDMI / DVI / VGA)

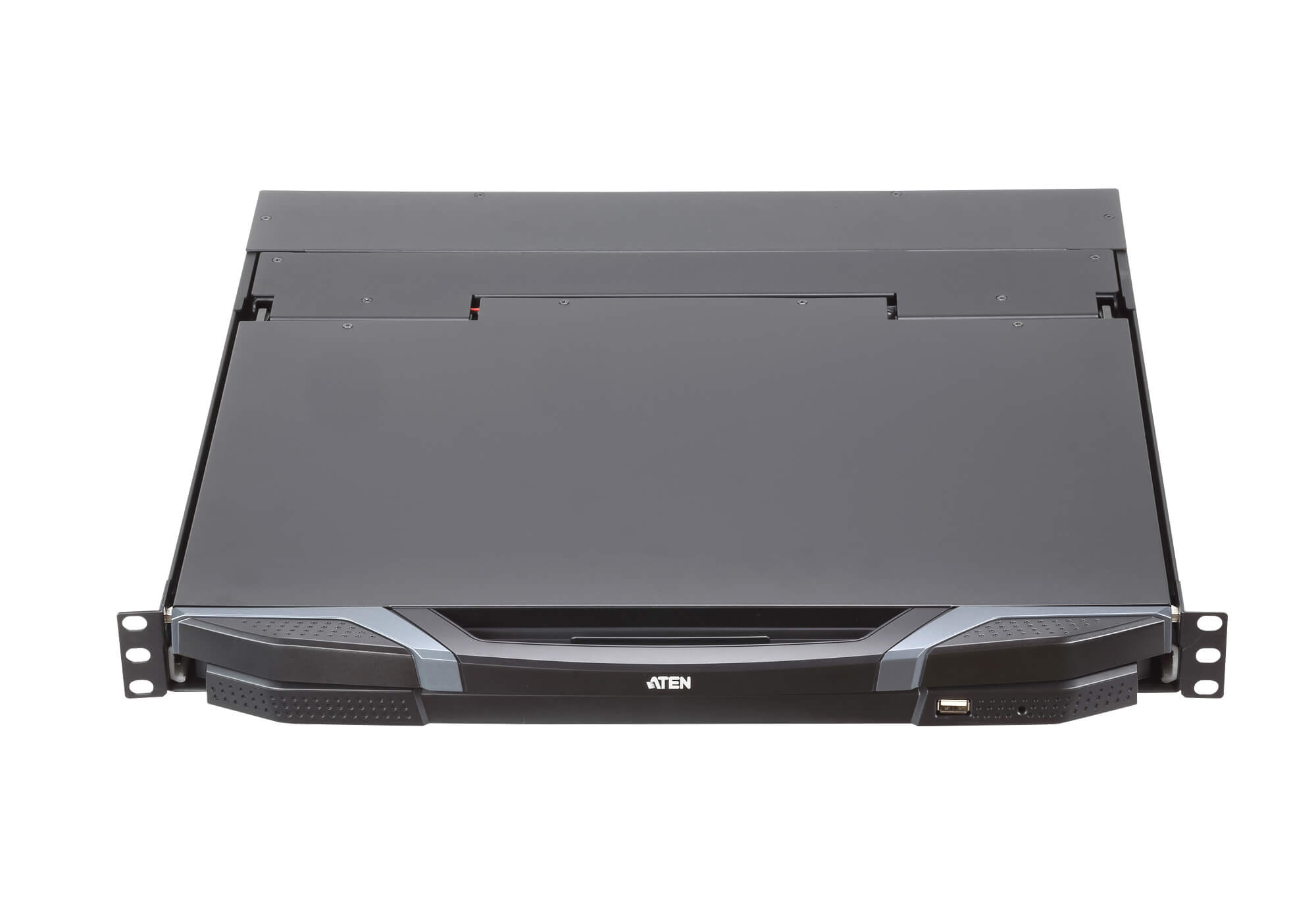

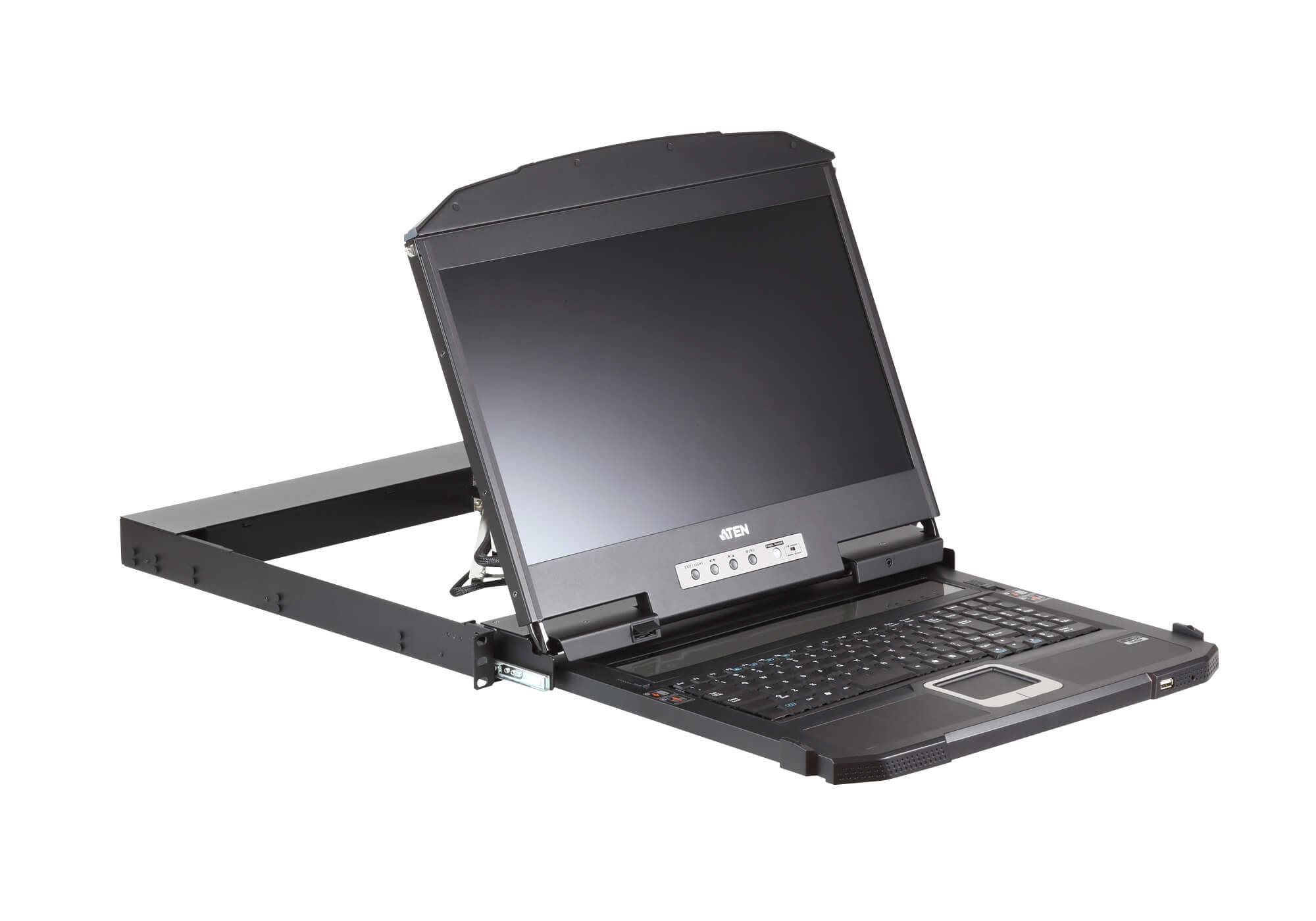

The ATEN CL3800 is a premium dual-rail LCD console designed to maximize accessibility and efficiency in tight rack spaces. This ultra short-depth, 1U unit integrates an 18.5″ LED-backlit widescreen LCD display, a full 105‑key keyboard, and a precision touchpad into a sleek sliding chassis built specifically for short-rack environments such as outside broadcast vans, compact control rooms, or shallow server cabinets.

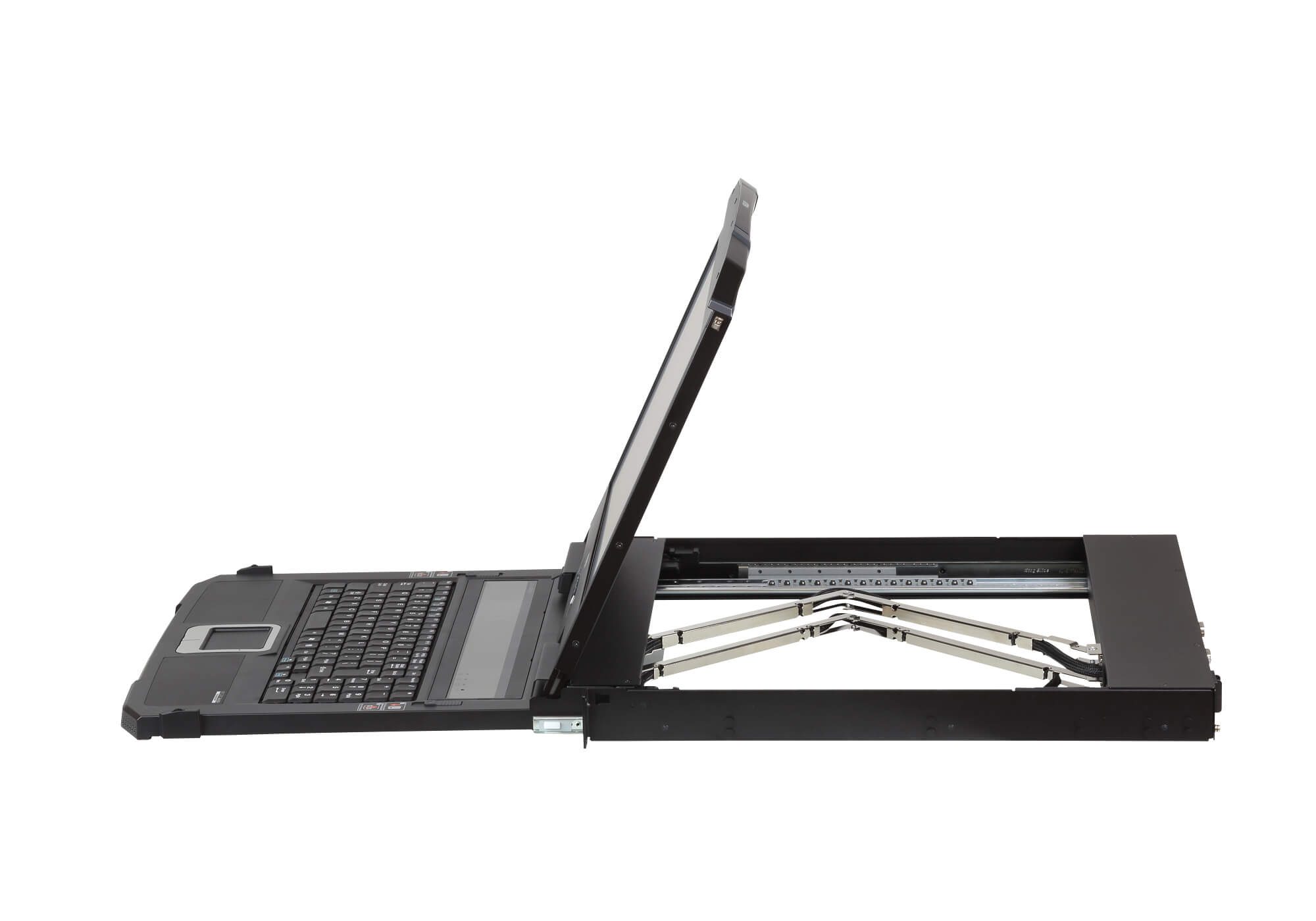

One of the CL3800’s most striking design features is its dual-rail architecture. The display and console modules operate independently, sliding out at staggered intervals. The keyboard/touchpad can retract behind the monitor when not in use, while the screen swings upward to remain flush with the rack door, providing unobstructed monitoring of system status. This design enables a clean, space-saving layout without compromising usability.

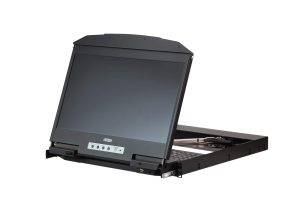

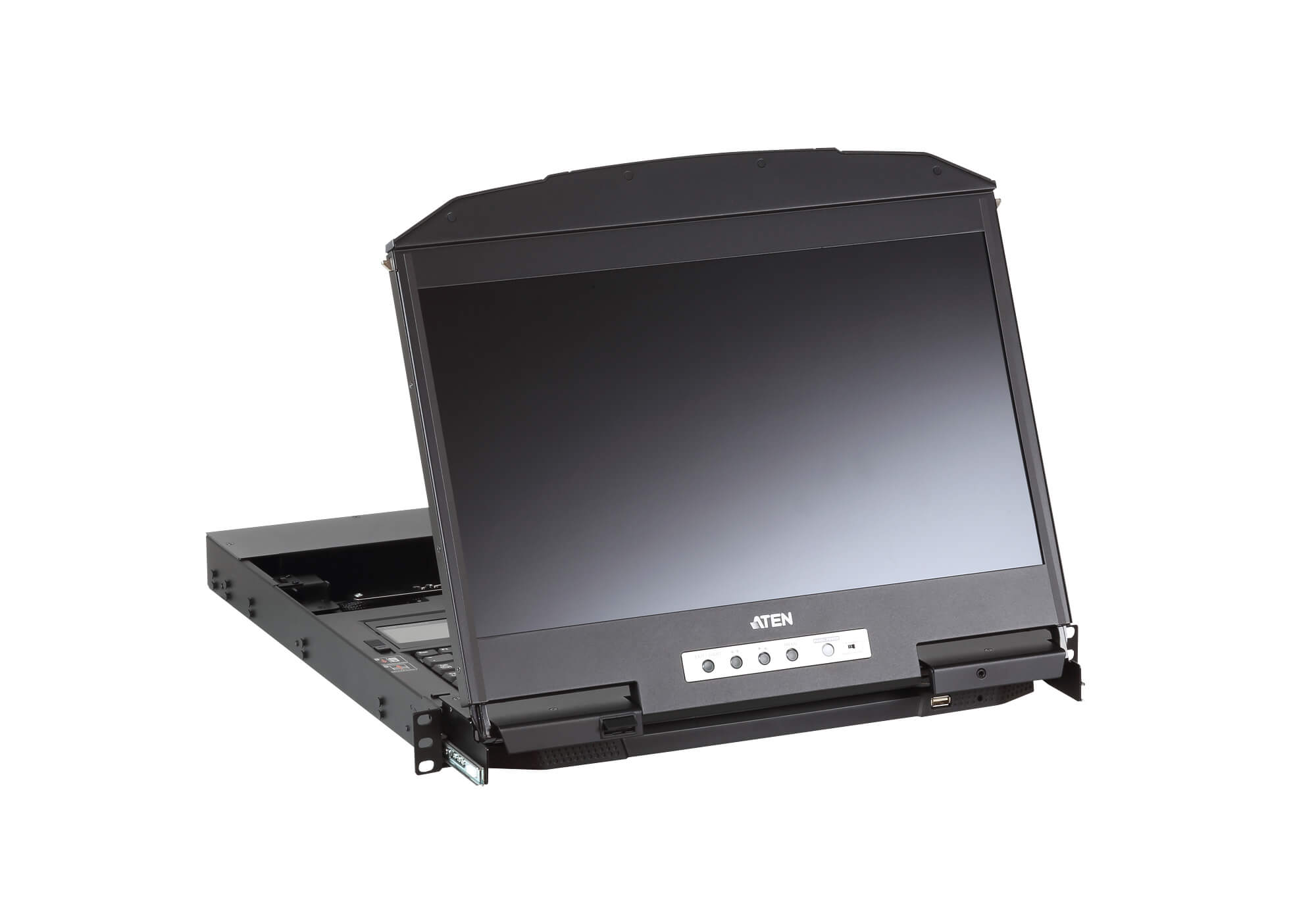

Equipped with an 18.5″ widescreen display, the CL3800 offers excellent visual fidelity. The CL3800NW model delivers true Full HD at 1920 × 1080 @ 60 Hz, while the CL3800NX variant supports 1366 × 768 @ 60 Hz. An external console output also supports up to 1920 × 1200 @ 60 Hz via HDMI, DVI, or VGA—a versatility that enhances compatibility with various peripheral consoles.

The console’s flexible multi-video input support includes HDMI, DVI, and VGA interfaces. Only one video input is active at a time, but the selection can be done conveniently through the hotkey interface.This flexibility allows integration with a wide range of servers, KVM switches, or external monitors, adapting to varied deployment scenarios.

In low-light rack environments, the console’s exclusive LED illumination light helps maintain clear visibility of the keyboard and touchpad without disturbing adjacent personnel.Furthermore, a sturdy console lock feature secures the unit in its stowed position during transport or when not in use. Standard and optional mounting kits accommodate different rack layouts and double-stacking with other KVM/IP switches for optimized space usage .

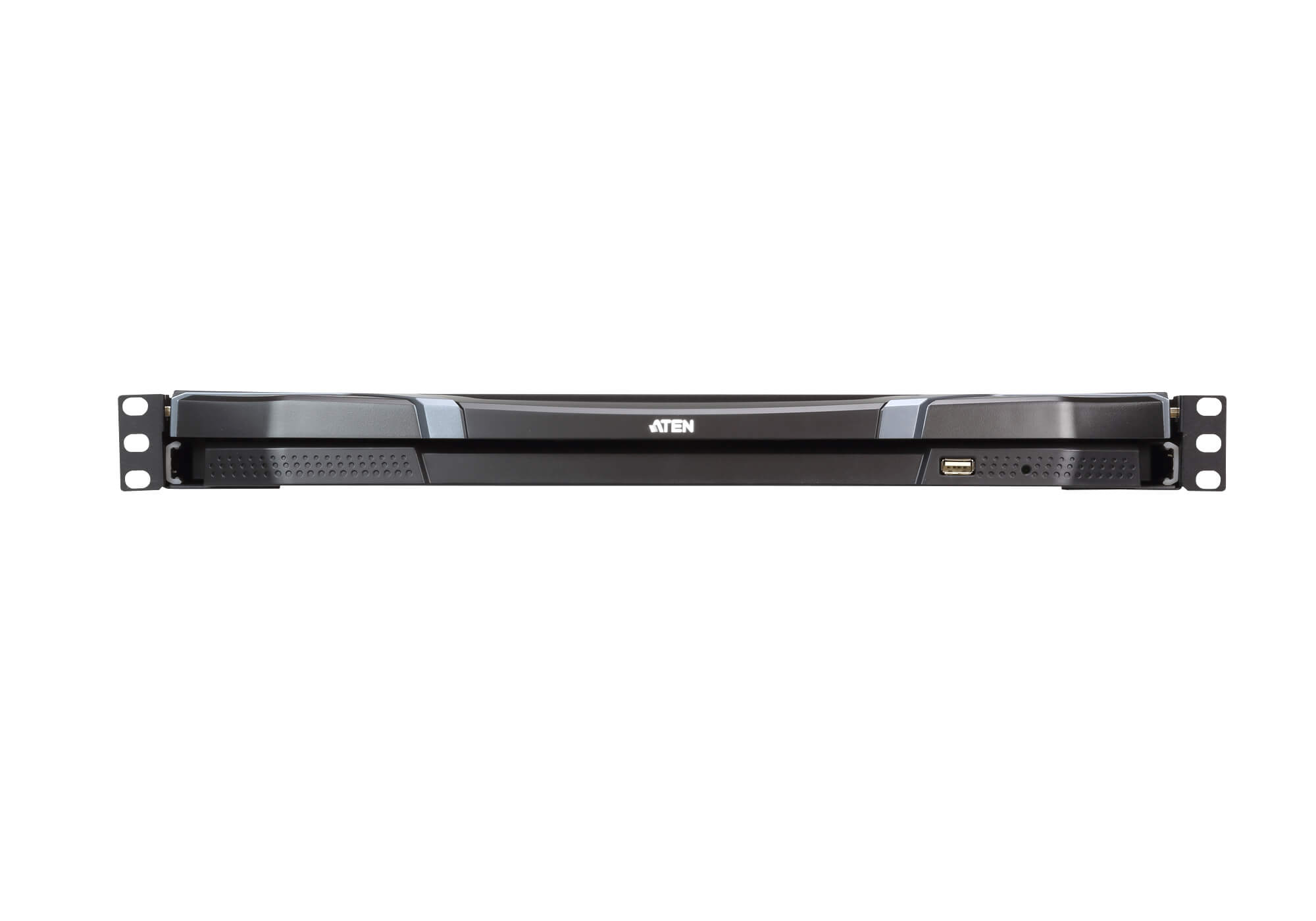

For added convenience, the CL3800 supports an external console via rear-panel connections, including USB for keyboard/mouse and any one of HDMI, DVI, or VGA video. There’s also a front-panel USB port designated for an external mouse or shared peripheral—ideal for tasks like transferring firmware updates via USB drives—without disrupting the integrated console.

Audio support is built-in with dual mini-stereo ports, allowing the connection of speakers for local monitoring. This feature is particularly useful when administrators need audio feedback from servers or software notifications directly from the rack.

Energy-efficient yet ruggedly built, the CL3800 combines a durable metal chassis with LED backlighting and a universal power supply. Firmware upgrades are accessible via a dedicated cable, with no software installation needed.Fully hot-pluggable, the unit boasts long-lasting reliability and support for DDC standards, which automatically align display settings for seamless plug-and-play operation .

Real-world deployments benefit from this console’s space-saving capabilities and adaptability. It fits comfortably in shallow racks or mobile units, offers easy hardware monitoring without additional bezels, and supports environments where rack depth and accessibility are limited. It is an excellent solution for broadcast applications, industrial control systems, and compact server configurations .

In summary, the ATEN CL3800 Ultra Short Depth Dual‑Rail WideScreen LCD Console brings together exceptional space efficiency, flexible video input options, superior Full HD display performance, and practical user-first features like dual-rail design, LED illumination, and external console support. It is meticulously engineered to deliver reliable operation in space-constrained, professional AV and IT environments—with no compromises on functionality or convenience.

---
