ATEN CL3000N-ATA-AG
19″ Lightweight PS/2-USB LCD KVM Console (w/ Extra Local Console). MIL-STD-810G Certified

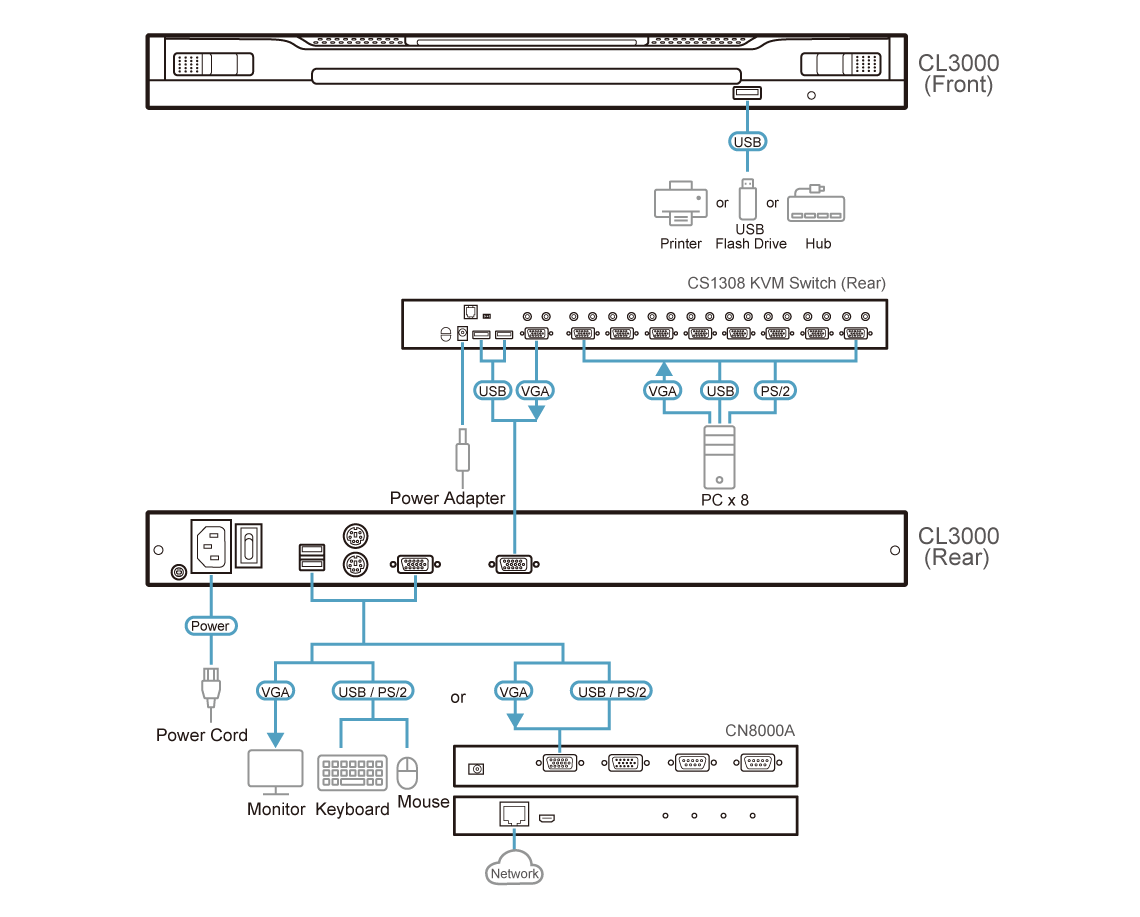

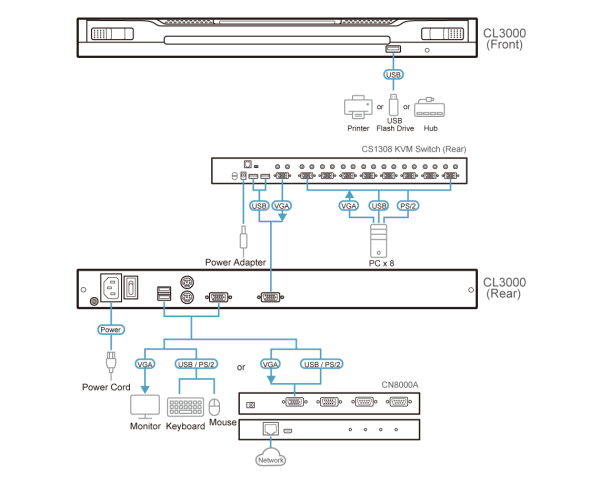

The CL3000 Lightweight PS/2-USB LCD Console is a LCD KVM console that serves as the front end console for compatible KVM switches.

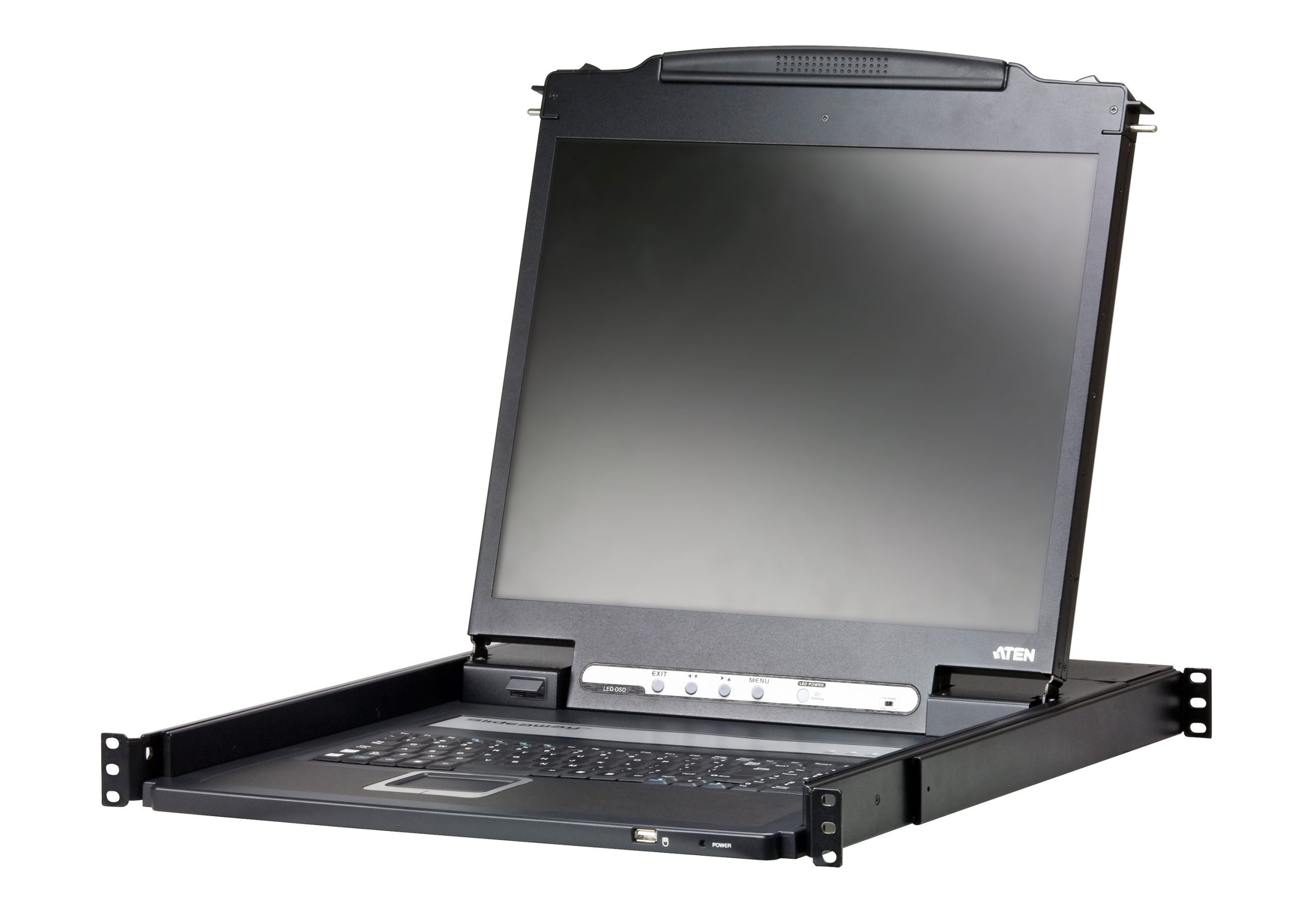

Lightweight and with a 19″ power-saving LED-backlit LCD, the CL3000 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, LED-backlit LCD monitor, and touchpad in a 1U housing.
In addition, testing is performed utilizing the MIL-STD-810G* (Method 514.6, Procedure 1, Category 4 Common Carrier) procedure for Vibration Certification. MIL-STD-810G testing provides proven reliable operations of the CL3000 in harsh environments, by using advanced testing to emphasize the equipment’s environmental design and limits in real world conditions that it will experience throughout its life; such as operating in a moving vehicle or on a factory floor where high vibrations occur often.
*MIL-STD-810G Method 514.6, Procedure I, Category 4
(Common Carrier, US Highway Truck Vibration Exposure) Exposed to random vibration tests at different levels based on axes from 5 to 500 Hz, for one hour per axis. Total levels applied are 1.07 Grms vertical axis (Z axis), 0.76 Grms transverse axis (Y axis), and 0.76 Grms longitudinal axis (X axis)
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below or the link: LCD KVM Optional Rack Mount Kit
CL3000N: 19″ LCD
Specifications
| Function | CL3000N |
| Computer Connections | |
| Direct | 1 |
| Console Selection | Hotkey |
| Connectors | |

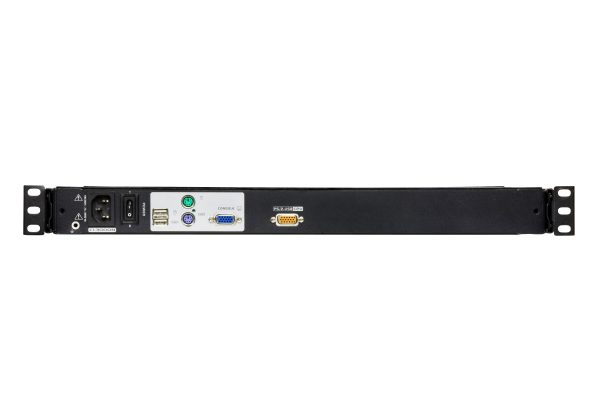

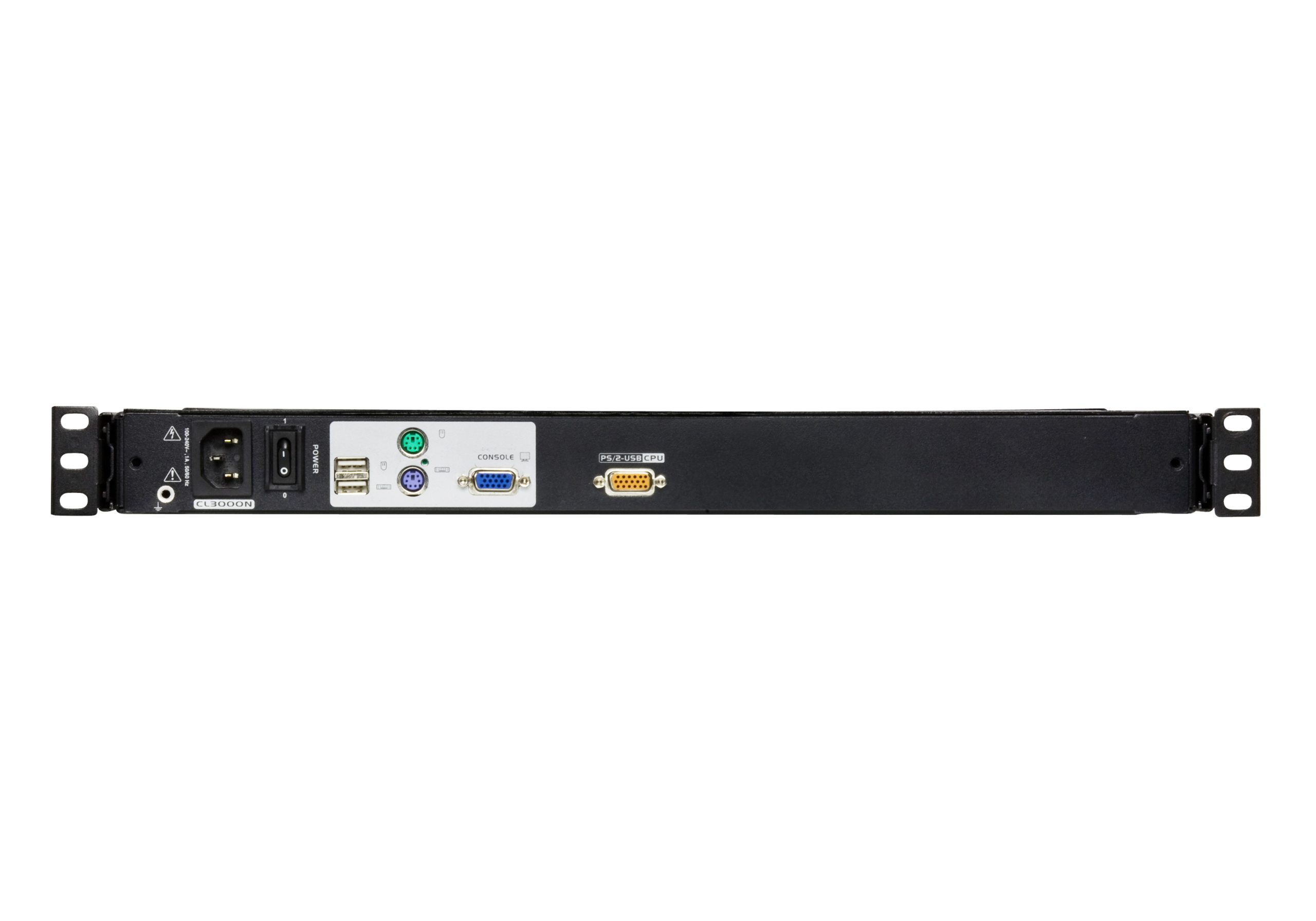

| KVM Ports | 1 x SPHD Female (Yellow) |
| Power | 1 x IEC 60320/C14 |
| External Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) |
| External Mouse / Peripheral | 1 x USB Type A Female (Front) |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
| Power | 1 x Rocker Switch |
| LCD Control | 4 x Pushbutton |
| LCD Power | 1 x LED Pushbutton |
| LEDs | |
| Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |

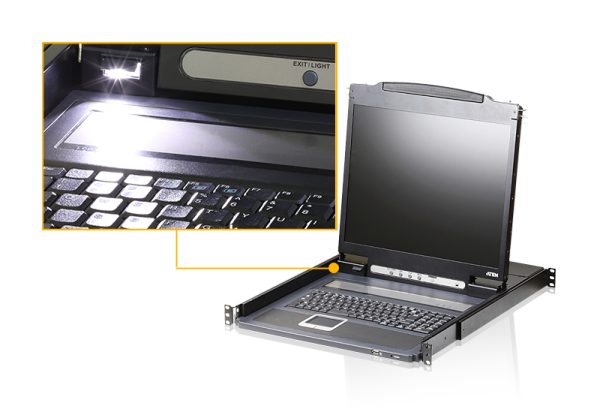

| LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec | |
| LCD Module | 19″ TFT-LCD |
| Resolution | 1280 x 1024@75Hz |
| Response time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.294 mm x 0.294 mm |
| Support Color | 16.77M colors |
| Contrast Ratio | 1000:1 |
| Luminance | 250 cd/m² |
| Video | |
| Input Video Resolution | up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B |
| Emulation | |
| Keyboard / Mouse | PS/2, USB |
| Maximum Input Power Rating | 100–240VAC; 50–60Hz; 1A |
| Power Consumption | AC110V:23.8W:122BTU/h AC220V:25.4W:130BTU/hNote: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Random Vibration Resistant Test | MIL-STD-810G Certified Test Conditions: • Frequency Range: 5-500Hz • Grams: Value X, Y axis 0.76Grms, Z axis 1.07Grms • Test Duration: 1 hour/per axis |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Aluminum |
| Rail Type | Single Rail |
| Weight | 9.00 kg ( 19.82 lb ) |
| Dimensions (L x W x H) | 48.00 x 58.92 x 4.40 cm (18.9 x 23.2 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
